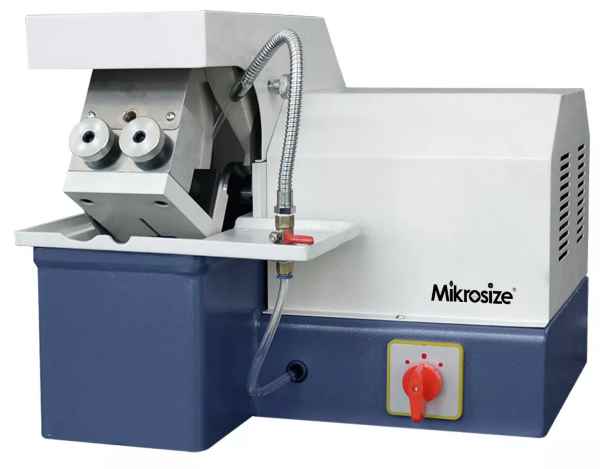

Mikrosize MC-50 Manual Cutting Machine (Y90L-2, 2.2KW)

Max Cutting Diameter: 50mm

Max .Cutting Section: 50×50mm

Specifications of cutting disc: 300×2×32mm

Rotating Speed: 2800 r/min

Motor: Y90L-2, 2.2KW

Power supply: 3 Phase ,380V, 50HZ

Overall dimensions: 740×465×390 mm

Net weight: 70kg

MC-55 Manual Cutting Machine Packing List

Machine Mainframe

Water flow-out Pipe

Product Certificate

Cutting Disc300×2×32mm

Inner hexagon spanner

Instruction Manual

Water flow-in Pipe

36mmWrench

Packing List profile

MC-50 Manual Cutting Machine Description:

●Apppicated to metal ,Nonmetal material Specimen in order to observe the Metallographic and Lithofacies structure

●Bentch Type ,Low noise,Anti-water motor,

●The machine features high performance, and high finish of specimen cutting sections, etc.

●The machine has nice appearance and it is easy to operate safely and reliably.

●It is the ideal and necessary specimen preparation instrument used in factories, scientific research institutes and colleges, etc.
