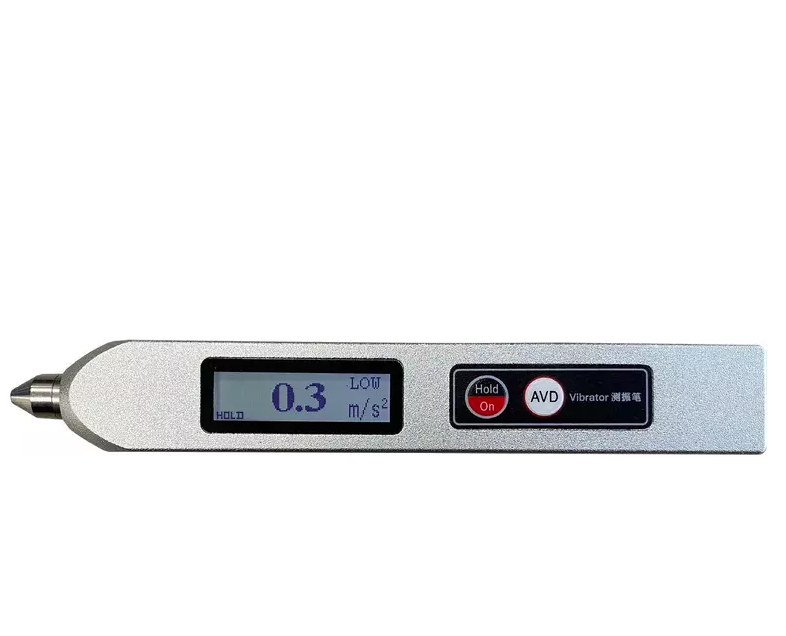

Mikrosize iVibra-100 Pen Type Portable Vibration Tester (0.1 m/s² ~ 290.0 m/s²)

Measurement Parameters: Acceleration, Velocity, Displacement

Measurement Range

Acceleration:0.1m/s2-290.0m/s2(Peak Value)

Velocity:0.1mm/s-290.0mm/s(Valid Value)

Displacement:0.001mm-2.900mm(Peak-Peak Value)

Frequency Range

Acceleration: 10Hz~1kHz(LO), 1kHz~15kHz(HI)

Velocity: 10Hz~1kHz

Displacement: 10Hz~500Hz

Measurement Error: ±5%±2

Display: LCD Display

Battery: Two LR44 Button Batteries

Working Hours: Continuous Work For About 4 Hours,intermittent Use About 300 Times

Use Environment

Temperature: 0°C~40°C

Relative Humidity<85%

Size: 152×22×16mm

Weight: 90g

Standard Delivery

Main Unit: 1 pc

Neck Strap: 1 pc

LR44 Battery: 1 pc

Screwdriver: 1 pc

Leather Case: 1 pc

Package Case: 1 pc
