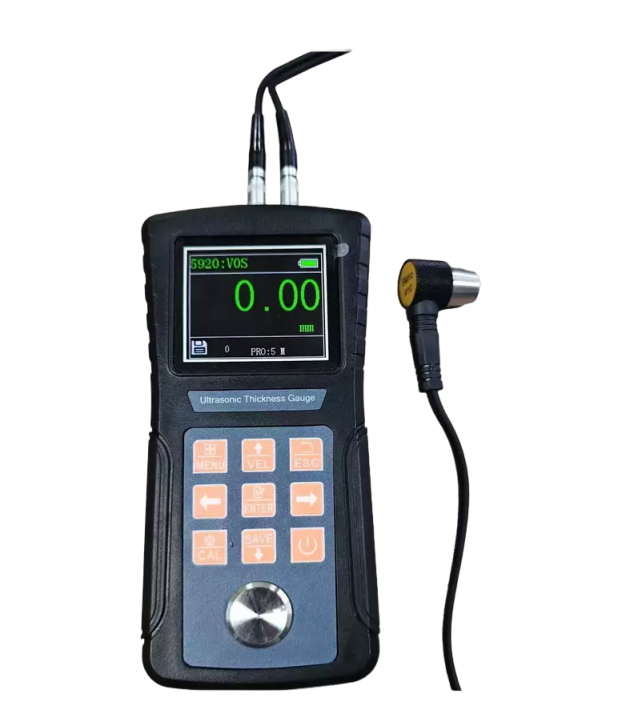

Mikrosize iThick-220 Ultrasonic Thickness Gauge (0.75~600mm)

Measuring Range: 0.75~600mm(Determined By The Probe)

Resolution: 0.01mm

Measuring Unit: Optional mm/inch

Languages: English/Chinese

Measuring Precision

When The Measuring Range Is 0.75~99.99, The Resolution Is 0.01, And The Allowable Error Is ±3%h+0.04.

When The Measuring Range Is 100.0~600.0, The Resolution Is 0.1, And The Allowable Error Is ±5%h+0.04.

Note: H Is The Measured Thickness

Sound Speed Adjustment: 1000~9999 m/s

Calibration Function: Features Probe Zero Point And Two-point Calibration Functions

Data Storage: Capable Of Storing 3000 Sets Of Thickness Measurement Data (Measurement Values And Sound Velocity Values Only) And 3000 Sets Of Parameter Datasets (Including Measurement Values, Instrument Settings, And Other Parameters)

Communication Interface: USB

Audible and Visual Alarm: Upper And Lower Limit Prompts (Can Be Set According To The Thickness Of The Workpiece Being Measured)

Minimum Thickness Capture Capability: Capable Of Capturing Minimum Thickness Value

Workpiece Surface Temperature: -10~60°C

Measuring Cycle: 6 Times/second In Single Point Measurement, 20 Times/second In Scanning Mode

Lower Limit For Pipe Measurement: Φ20mmX3.0 mm (5Mhz Probe); 15mmX2.0 mm (7Mhz Probe)

Indication Error: Less Than ±0.1mm

Calibration: 4.0 mm(Steel)

Power Source: AAA Alkaline Battery 1.5V (4 Pieces)

Working Time: Continuous Operation Up To 250 Hours (Without Backlight)

Net Weight: 245g

Working Environment

Operating Temperature -20°C to +50°C

Storage Temperature: -30°C to +70°C ; Relative Humidity ≤90%

The Surrounding Environment Should Be Free From Intense Vibration, Strong Magnetic Fields, Corrosive Media, And Severe Dust.

Dimensions: 145mmx74mmx32m

Standard Delivery

Main Unit: 1pc

Standard Probe(5MHz): 1pc

Couplant: 1 bottle

Abs Instrument Case: 1pc

Aaa Size Alkaline Batteries: 4 pcs

Data Cable: 1pc

Optional Delivery

Large Diameter Probe(2.5MHz): TP0214400

Large Range Probe(2MHz): TP0214600

Micro-diameter Probe(7MHz): TP0706080

High Temperature Probe(5MHz): HTP0514200

High Temperature Couplant: TG-HTC
