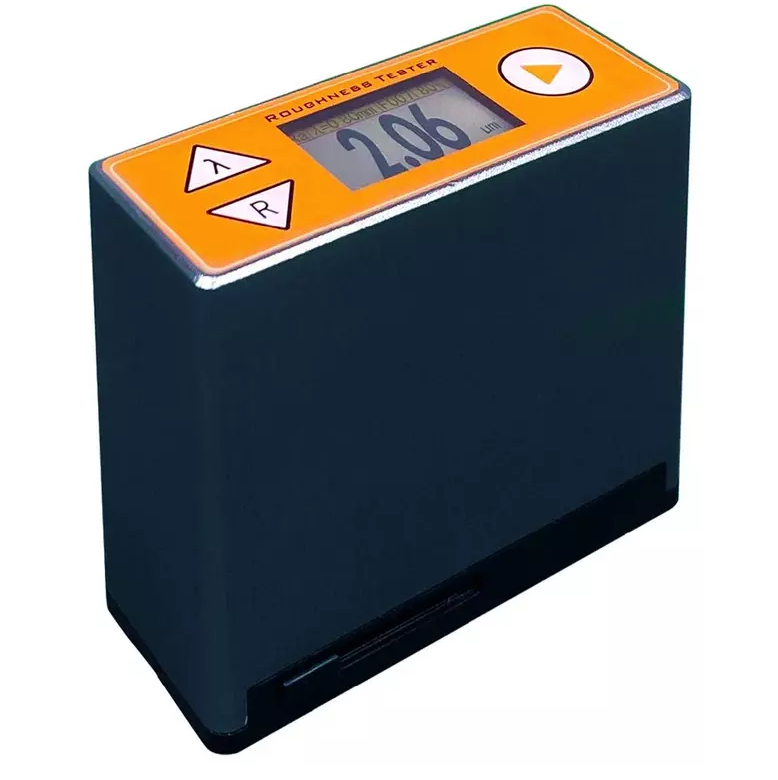

Mikrosize iSurfa-100 Surface Roughness Tester (Ra,Rq: 0.05~10.0 / Rz,Rt: 0.1~50)

Measuring Range(μm )

Ra,Rq: 0.05~10.0

Rz,Rt: 0.1~50

Parameter(μm): Ra,Rz,Rq,Rt

Travel Length(mm): 5.6

Sample Length(mm): 0.25,0.80,2.50

Evaluation Length(mm): 1.25,4.0

Display Error: ±10%

Display Variability: <12%

Stylus Radius and Angle: 90°(+5°,-10°)

Stylus Radius: 10μm±1 μm

Measuring Force of Probe: ≤0.016N

Force Change Rate: ≤800N/m

Sensor Guide Pressure: ≤0.5N

Battery: One 1.5V AA Dry Battery

Dimensions: 73mm×28mm×62mm

Net Weight: 220g

Working Environment Conditions

Temperature: -20°C~40°C

Relative Humidity: < 90%

No Vibration And Corrosive Medium Around

Standard Delivery

Main Unit: 1 pc

Calibration Block: 1 pc

Instrument Case: 1 pc

Screwdriver: 1 pc

Optional Delivery

Bluetooth Adapter: SRT-BA
