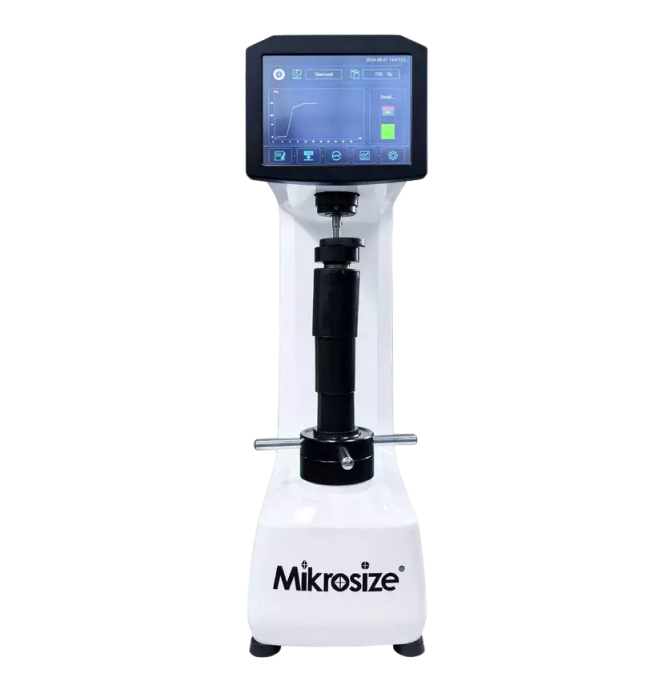

Mikrosize iRocky-45CL Touch Screen Superficial Rockwell Hardness Tester (71-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15T, 29-82HR30T, 10-72HR45T)

Test force: 15kg, 30kg, 45kg

Test range:

71 - 94HR15N, 42 - 86HR30N, 20 - 77HR45N

67 - 93HR15T, 29 - 82HR30T, 10 - 72HR45T

Indentor: Diamond rockwell indentor: Φ1.588mm steel ball indentor

Tets space:

Test Height: 230mm

Test Throat: 170mm

Loading method: Initial Test Force: manual

Main Test Force: Automatic (loading-dwelling-unloading)

Hardness Scale: HR15T, HR30T, HR45T, HR30N, HR45N, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Conversion Scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW

Display: 8 inch touch screen

Hardness resolution: 0.1HR

Power supply: 110/220V, 50/60Hz

Optional Delivery

Small V-shape Test Anvil: VTA-S

Setting Table: VR-T

Rockwell Indentor Protector: RIP

1.588 Steel Ball: RSB-1.588

3.175mm Steel Ball Indentor: RSI-3.175

3.175 Steel Ball: RSB-3.175

6.35mm Steel Ball Indentor: RSI-6.35

6.35mm Steel Ball: RSB-6.35

12.7mm Steel Ball Indentor: RSI-12.7

12.7mm Steel Ball: RSB-12.7

Rockwell Hardness Block: HR45N/15T/30T/ 45T/15Y/50Y/45Y

Standard Delivery

Mainframe: 1pc

Φ1.588mm Ball Indentor: 1 pc

Φ60mm Flat Anvil: 1 pc

Hardness Block 65-80HR30N: 1 pc

Hardness Block 80-90HR15N: 1 pc

Wrench: 2 pcs

Portable printer: 1 pc

Anti-dust cover: 1 pc

Diamond Rockwell Indentor: 1 pc

Φ150mm Flat Anvil: 1 pc

Φ40mm V-shape anvil: 1 pc

Hard nes Block70-85HR30TW: 1 pc

Power adaptor: 1 pc
