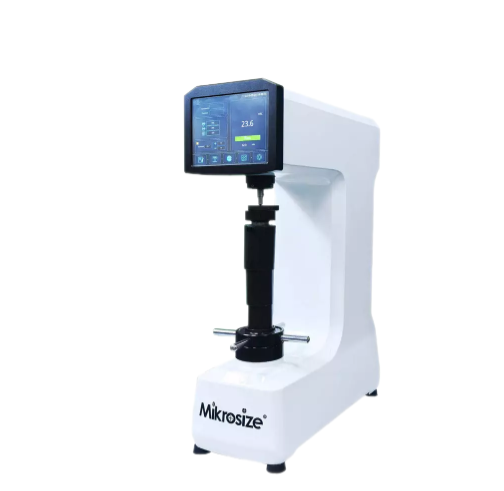

Mikrosize IRocky-150/45CL Touch Screen Superficial Rockwell Hardness (15kg，30kg，45kg)

Test Force: 15kg，30kg，45kg

Test Range: Rockwell: 71-94HR15N，42-86HR30N，20-77HR45N, 67-93HR15T，29-82HR30T，10-72HR45T

Indenter: Diamond Rockwell Indenter, Φ1.588mm Steel Ball Indenter

Test Space: Test Height：230mm, Test Throat：170mm

Loading Method:

Initial Test Force：Manual

Main Test Force：Automatic（Loading-Dwelling-Unloading）

Hardness Scale: HR15T, HR30T, HR45T,HR15N, HR30N, HR45N,HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Conversion Scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW

Display: 8 inch Touch Screen

Hardness Resolution: 0.1HR

Power Supply: AC110/220V, 50-60Hz AC

Standard Delivery:

Mainframe: 1pc

Diamond Rockwell Indentor: 1pc

Φ1.588mm Ball Indentor: 1pc

Φ150mm Flat Anvil: 1pc

Φ60mm Flat Anvil: 1pc

Φ40mm V-shape Anvil: 1pc

Hardness Block 65-80HR30N: 1pc

Hardness Block70-85HR30TW: 1pc

Hardness Block 80-90HR15N: 1pc

Power Adaptor: 1个

Wrench: 2 pcs

Power Cord: 1pc

Portable Printer: 1 pc

Product Certificate/Warranty Card:Each 1 copy

Anti-dust Cover: 1 pc

Instruction Manual: 1 copy
