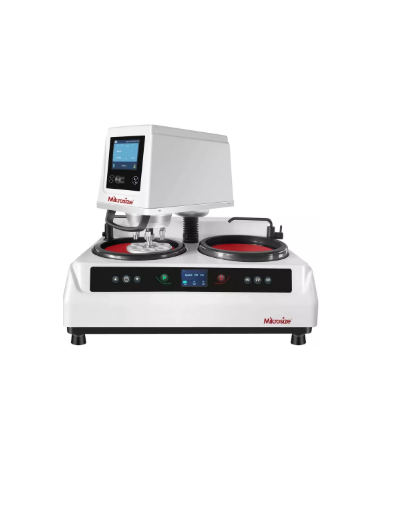

Mikrosize iPoli-2SC-250A Auto Metallographic Grinding Polishing Machine (Ø250mm, 50-1000 r/min)

Working disc diameter: φ250mm（customized φ230mm、φ300mm）

Working disc speed (rpm): 50-1000 r/min（Variable speed）,300 / 600 / 900 r/min（three fixed speed）

Rotation direction: Clockwise and counter clockwise

Speed of grinding and polishing head: 5-150 r/min（variable speed）

Preparation sample quantity: 6pcs

Force loading Range: Individual 20-70N, central 150-300N

Sample preparation time: 0-3000 S

Specimen diameter: Standard φ30mm（customized φ22-φ45mm）

Input voltage: Single phase 220V±10%，50-60Hz

Total power: 1100W

Overall dimension: 735*570*590mm

Net weight: 90kg

Standard Delivery

Machine Mainframe: 1 set

Polishing Cloth Φ250mm: 2 pcs

Abrasive Paper Φ250mm: 4 pcs

Grinding Disc Φ250mm: 1 pc

Aluminum Retaining Ring Φ250mm: 1 pc

Outlet Pipe: 1 pc

Inlet Pipe: 1 pc

Pressure-Resistant Hose Φ8*3000mm: 1 pc

Oil-Water Separator: 1 pc

Magnetic Disc: 1 pc

Anti-Adhesion Disc: 13 pcs

Leveling Feet: 4 pcs

Power Cable: 1 pc

Anti-dust Cover: 1 pc

Water Shield: 1 pc

Central Sample Holder: 1 pc

Single Sample Holder: 1 pc

Plastic Cover: 1 pc

Central Clamping Dev

Optional Delivery

Silicon Carbide Abrasive Paper: SC-A

Aluminum Oxide Abrasive Paper: AO-WA

Polishing Cloth: VC/WC/SC/CC/NC/FC/SPC-A

Monomorph Diamond Suspension: DSM

Polycrystal Diamond Suspension: DSP

Aluminum Oxide Suspension: AOS

Silicon Suspension: SOP
