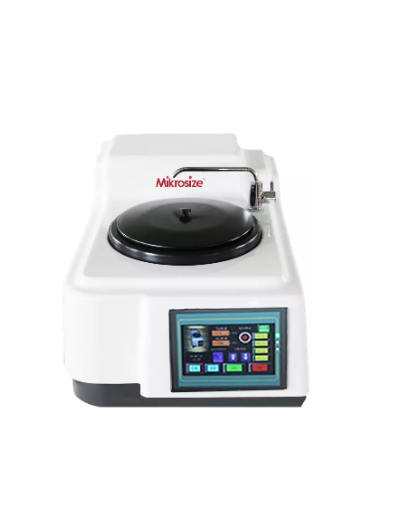

Mikrosize iPoli-1D-200M Metallographic Manual Grinding Polishing Machine (φ230mm, 50–1000rpm)

Working disc diameter (mm): 203（customized φ230，φ250）

Working disc speed (rpm): 50-1000，150/300/600/800

Motor power: 550W

Overall dimension: 500*910*475mm

Net weight: 41kg

Gross weight: 55kg

Input voltage: Single phase 220V±10%，50-60Hz

Standard Delivery

Water Shield: 1pc

Velvet Polishing Cloth Φ203mm (Non-adhesive): : 2pcs

Abrasive Paper Φ203mm: 2pcs

Plastic Cover: 1pc

Inlet Pipe: 1 pc

Outlet Pipe: 1pc

Ground Screw: 2pcs

Aluminum Buckle Ring Φ203mm: 1pc

Polishing Disc Φ203mm: 1pc

Optional delivery

Silicon Carbide Abrasive Paper: SC-A

Aluminum Oxide Abrasive Paper: AO-WA

Polishing Cloth: VC/WC/SC/CC/NC/FC/SPC-A

Monomorph Diamond Suspension: DSM

Polycrystal Diamond Suspension: DSP

Aluminum Oxide Suspension: AOS

Silicon SuspensionL: SOP
