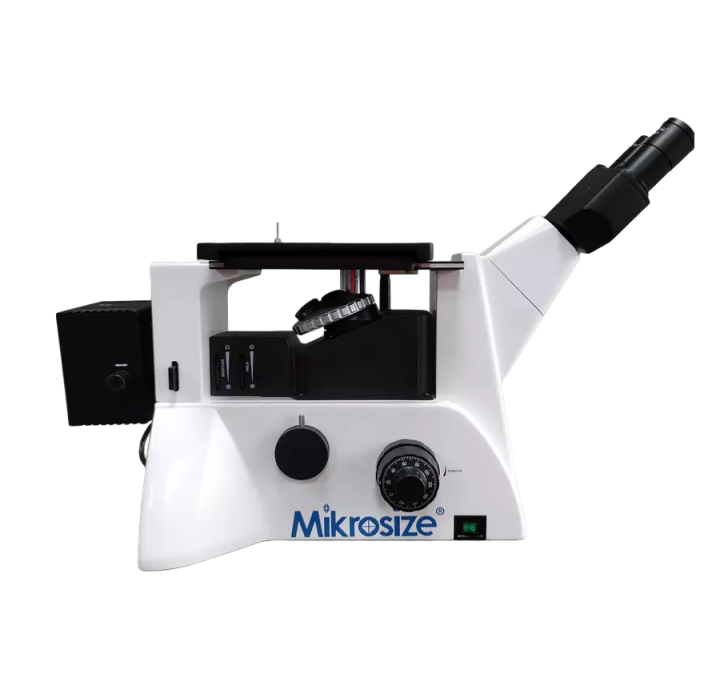

Mikrosize iMetal-880BD Inverted Metallographic Microscope

Equipped with dark / bright field objective

Eyepiece: 10x Wide View Plan Eyepiece WF10X/Ø22mm

Eyepiece Interface is Ф30mm

Inifitive Planachromatic Objectives:

PL L5X/0.12 BD  working distance：9.70 mm

PL L10X/0.25 BD  working distance：9.30 mm

PL L20X/0.40 BD  working distance：7.23mm

PL L50X/0.70 BD  working distance：2.50 mm

Eyepiece Adaptor: Hinged Binocular Tube,With an Observation Inclined Angle of 45°, And a Interpupillary Distance of 53-75mm

Nosepiece: Quintuple Nosepiece(Inward-facing Ball Positioning)

Focusing: Coarse/fine Coaxial Focus With Locking Device,Micro-lattice Value:2µm

Mechanical Movement Stage:

Overall Dimension:242mmX200mm.

Movement Range:30mmX30mm

Circular Rotating Mechanical Stage:

Maximum Measurement:Ф130mm.

Minimum Clear Aperture:Less Than Ф12mm

Illumination System: 12V/50W Halogen Lamp, adjustable brightness

Built-in Field Diaphragm,Aperture Diaphragm and Puller Type Polarizer

Equipped with Frosted Glass,Yellow,Green and Blue Filters

Power supply: AC220V/50Hz; 110V/60Hz
