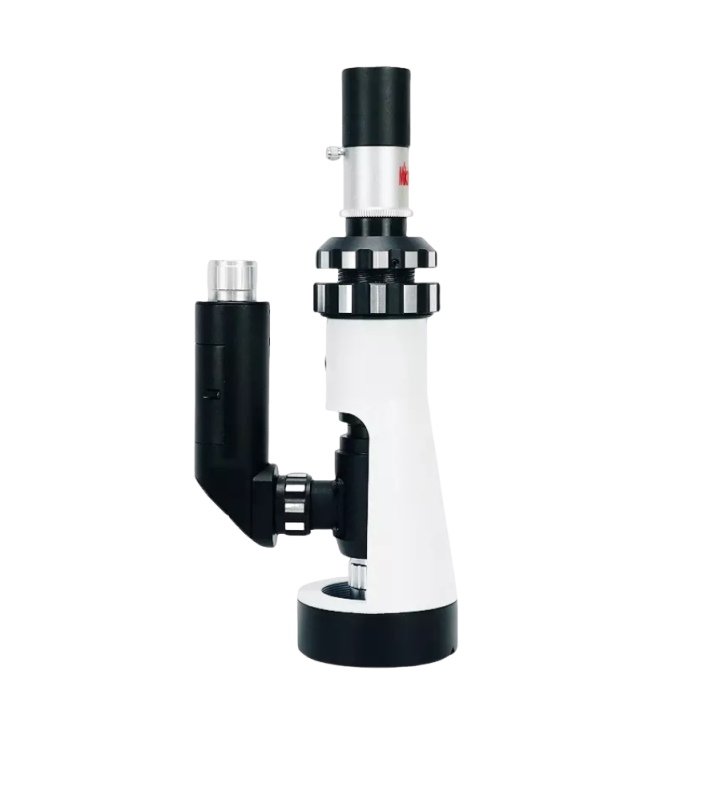

Mikrosize iMetal-400 Portable Metallographic Microscope (10X Φ18mm / 100X, 400X)
ManufacturerMikrosize(View more products from this manufacturer)
ModeliMetal-400
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Eyepiece: Plan Eyepiece 10X Φ18mm
Objective:
Achromatic objective 10X NA0.25 WD7.3mm
Metallographic objective 40X NA0.65 WD0.5mm
Magnification: 100X、400X
Focusing Range
Coarse handwheel focusing range：23mm
Fine handwheel focusing range：1.5mm
Machine Dimension: 320*240*110mm
Packing Dimension: 380*300*150mm
Net Weight: 3kg
Gross Weight: 4.5kg
Light Source: LED coaxial light source
Voltage: 220V 50/60Hz
Packing Box: Aluminium box
