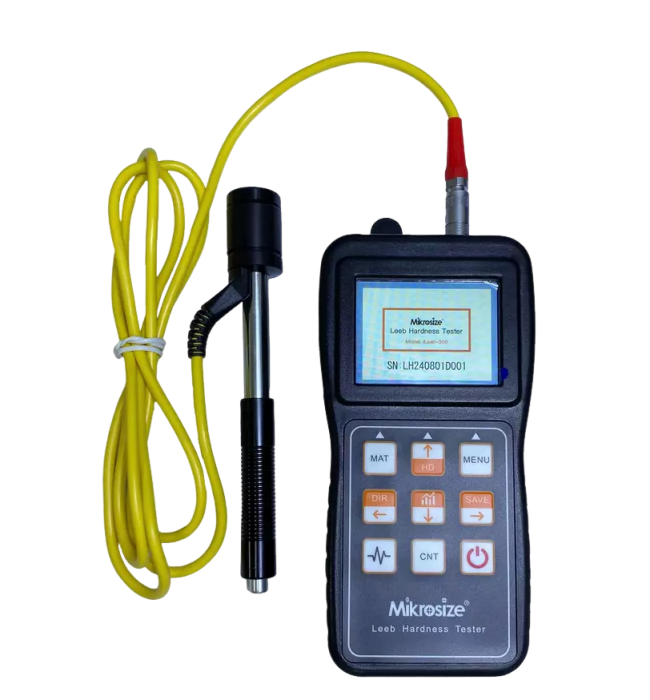

Mikrosize iLeeb-300 Color Screen Leeb Hardness Tester (HLD (170 ~ 960))

Measurement Range: HLD (170 ~ 960)

Measurement Direction: Support Vertical Downward, Oblique Downward, Horizontal, Oblique Upward And Vertical Upward

Hardness Scales: Leeb(HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), Shore (HS)

Standard Impact Device: Impact Device of Type D

Optional Impact Device: D/ C /DC / D+15 / DL/ E/ G

Display: Color Screen

Data Memory: Up to 100 Groups (Impact Times 32 ~ 1)

Power Supply: 3V (Two AA Size Alkaline Batteries In Series)

Interface Port: USB

Measuring Materials: Steel And Cast Steel, Alloy Tool Steel, Cast Aluminum Alloy, Gray Cast Iron, Nodular Cast Iron, Stainless Steel, Copper Zinc Alloy (Brass), Copper Tin Alloy (Bronze), Pure Copper

Hardness Scales: Leeb(HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), Shore (HS)

Working Time: Low Brightness For About 15 Hours;high Brightness For About 7 Hours

Dimensions: 150×76×37 mm

Weight: 245g

Working Environment:

Operating Temperature: -10°C ~ +50°

CStorage Temperature: -30°C ~ +60°C

Relative Humidity: ≤90%

No Strong Vibrations, No Intense Magnetic Fields, No Corrosive Media, And No Severe Dust In The Surrounding Area.

Standard Delivery

Main Unit: 1 pc

D Type Impact Device: 1 pc

Standard Test Block: 1 pc

Brush: 1 pc

Supporting Ring: 1 pc

AA Battery: 2 pc

Instruction Manual: 1 copy

Instrument Case: 1 pc
