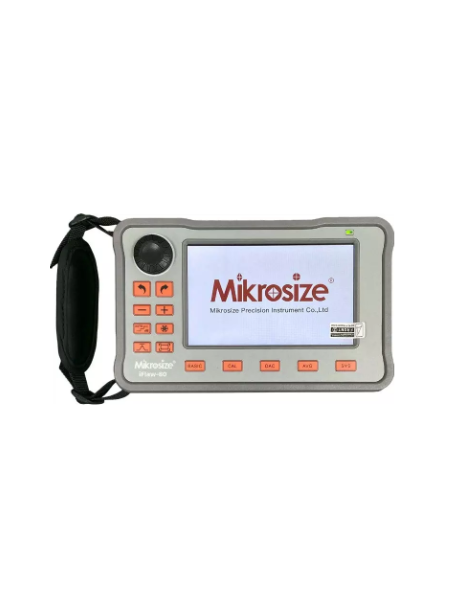

Mikrosize iFlaw-80 Ultrasonic Flaw Detector (0.1MHz~20MHz; 250~16000m/s)

Bandwidth: 0.1MHz~20MHz

Gain: 120dB, Pace 0.1dB,0.6dB,1dB,2dB,6dB

Wave Filter: Broadband,1m,1.25m,2.5m,5m,10m,15m,1m-5m

Sampling Rate: Hardware Sampling Rate 100MSPS,Equivalent Sampling Rate 400MSPS

Detection Mode: Full Wave, Positive Half Wave, Negative Half Wave, RF, Envelope

Detection Range: 20 Meters (Longitudinal Wave Carbon Steel),Pace 100mm, 10mm, 0.1mm

Sound Velocity: 250~16000m/s

Pulse Mode: Sharp Pulse, Square Wave, Dual-square Wave

Pulse Voltage: 25V~300V , 25V Pace

Pulse Width: 0ns~500ns Continuously Adjustable, 5ns Pace

Emission Damping: Strong, Weak Adjustable

Pulse Frequency: Automatic Or Manual, Automatic Range(200Hz-1KHz),Manual Range(0-10KHz)

Probe Channel: 200 Groups, Supporting Operations Such As Creating, Previewing, Deleting, Renaming, Overwriting, And Restoring

Gate Alarm: Gate A And B Alarm, Lost Wave/Incoming Wave

Gate Mode: Independent Gate A, Gate B

Measurement Mode: Peak, Front Edge, J Front Edge

Quantitative Mode: DAC Curve ,AVG(DGS) Curve

Flaw Detection Standards: AWS D1.1/D1.5,NB/T 47013,GB/T 29712,GB/T 11345

Saving Content: Single Frame, Multi-frame Recording (≤ 500 Frames), Screenshot,Flaw Detection Report

Auxiliary Functions: Automatic Gain, Peak Memory, Waveform Freezing, Channel Management, Gate Alarm, Gate Expansion, Automatic Gate, Full Screen Touch, Virtual Keyboard, Color Half Span, Quick Screenshot, Channel Import/Export

Display Screen: 5.0 Inch 800×480 IPS_LCD

Probe Interface: Dual LEMO-00 C5

Output Interface: Type-C1,Mini USB

Charger: 30W_PD Fast Charging ,Standard Type-C Interface(100~240V,50~60Hz)

Size: 183mm×113mm×45mm

Weight: 700g,Including Battery But Not Rubber Sleeve

Language: English, Russian or Other Customized Languages

Unit: Metric System ,Imperial System

Battery: 7.4V 8000mAh aLithium Battery, 12 Hours Of Battery Life

Resolution Ratio: 30dB(Metrological Performance Requirements: ≥26dB)

Dynamic Range: 35dB(Metrological Performance Requirements: ≥26dB)

Sensitivity Margin: 55dB(Metrological Performance Requirements: ≥42dB)

Vertical Linearity: 1.2%(Metrological Performance Requirements: ≤6%)

Horizontal Linearity: 0.15%(Metrological Performance Requirements: ≤2%)

Standard Delivery

Main Unit: 1 pc

Probe (High-precision Straight Probe, Angle Probe): 2 pcs

Probe Cord: 2 pcs

Charger: 1 pc

Power Cord: 1 pc

Sd Card(8g): 1 pc

Conversion Plug (USB To C): 1 pc

Optional Delivery

SD Card(16g, 32g, 64g): FD-SD16/32/64

Power Bank: FD-PB
