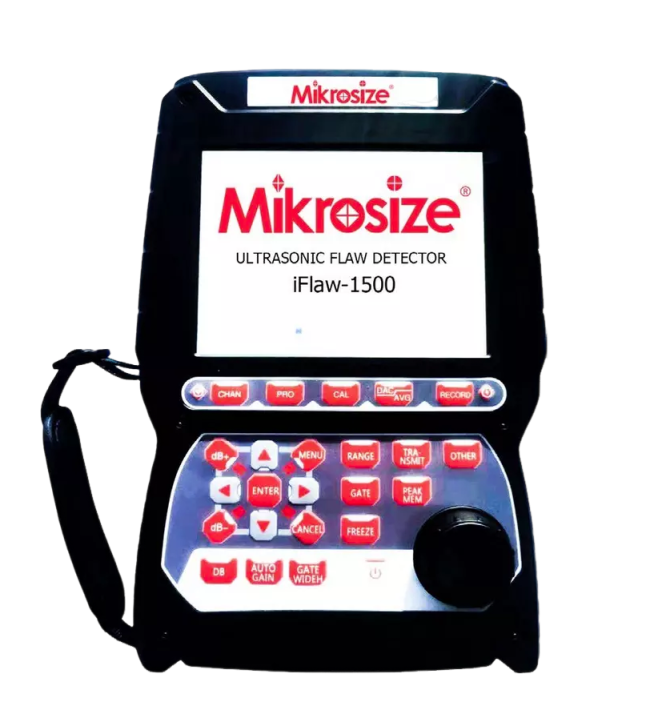

Mikrosize iFlaw-1500 Ultrasonic Flaw Detector (0.2 ~ 35 MHz / 100~20000 m/s)

Filter Band: 0.2~35 MHz

Total Gain Amount: 120 dB (With 0.1dB, 1dB, 2dB, 6dB Incremental Values)

Hardware Real-time Sampling: High-resolution 10-bit AD Converter, Sampling Rate 320MHz, Waveform Highly Preserved

Detection Range: 15 meters (Steel,Longitudinal  Wave),Transmission30meters(Expandable)

Sound Velocity Range: (100~20000)m/s

Dynamic Range: ≥38dB

Pulse Amplitude: 100V, 200V, 300V, 400V, 500V, Selectable In Steps, Suitable For A Wide Range Of Probes

Pulse Width: Continuously Adjustable In The Range Of (0.03~0.51)μs To Match Different Frequency Probes

Probe Impedance: 50Ω, 100Ω, 150Ω, 400Ω Selectable, To Meet Different Sensitivity And Resolution Requirements

Probe Types: Straight Probe, Inclined Probe, Dual-crystal Probe, Penetration Probe, Crawling Wave Probe, Surface Wave Probe

Repetition Rate: 10-3000Hz Adjustable

Receiving Waveform: Positive Half-wave, Negative Half-wave, Full Wave, Rf Waveform

Gate: Incoming Wave Gate, Lost Wave Gate; Single Gate, Dual Gate

Gate Reading: Single Gate And Dual Gate Reading Modes Available

Alarm: Buzzer Alarm, LED Light Alarm

Connector: BNC/LEMO Optional

Vertical Linear Error: ≤1.5%

Horizontal Linear Error: ≤0.1%

Digital Rejection: (0~80)%, No Effect On Linearity And Gain

Resolution: >40dB (5P14)

Sensitivity Margin: >66dB (Deep 200mm Ф2 Flat-Bottomed Hole)

Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

Operating Temperature: -10°C to 50°C Storage Temperature -30°C to 50°C

Dimensions: 260mm×175mm×60mm

Standard Delivery

Main Unit: 1 pc

High-precision Straight Probe: 1 pc

High-precision Angle Probe: 1 pc

Probe Connection Wire: 2 pcs

9v Power Adapter: 1 pc

Ultrasonic Flaw Detector Mobile App: 1 pc

Instrument Strap: 1 pc

Optional Delivery

Standard Test Blocks: FD-TB

Other Types Of Probes: Appendix

Other Probe Cables: FD-PC

Coupling Agents: FD-CP

Bluetooth Printer: FD-BP
