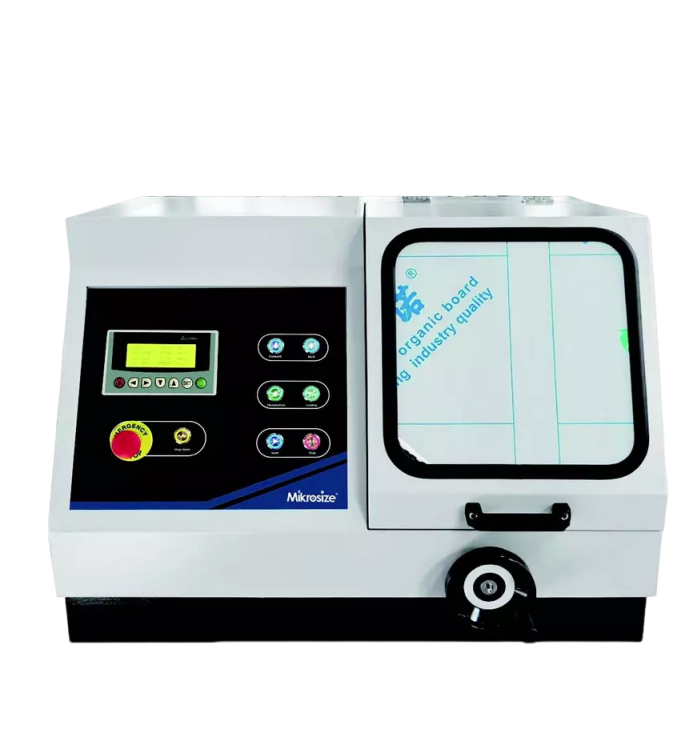

Mikrosize iCut-80A Metallographic Automatic Cutting Machine (80mm, 2150rpm)

Cutting Capacity: 80mm（Pipe）

Feed Depth Tracking: LCD Digital Display

Platform Y-axis Movement: 275mm

Cutting Table Dimensions: 310X280mm

Cutting Disc Specifications: 350X2.5X32mm

Clamping Table Specifications: The Fixture Is Divided Into Left And Right, With A Central Cutting Edge

Cutting Method: Manual/ Automatic

Feeding Method: Adjustable (Manual, Automatic)

Cutting Speed:

0.1-2.5mm/s, Automatic Cutting Mode Can Be

Selected: Intermittent Cutting (Metal Workpiece)

And Continuous Cutting (Non-metal Workpiece)

Feed Distance: Arbitrary Setting (0-200mm)

Reset Method: Automatic Reset

Cooling System: Automatic (Water Cooling 3 Channels)

Water Tank Capacity: 50L

Spindle Speed: 2150rpm

Motor Power: 3kw

Machine Type: Desktop

Machine Dimension:900×790×600mm

Power Supply: 380V

Gross Weight: 150KG

Standard Delivery

Machine Mainframe: 1 set

Water Tank (including water pump): 1 pc

Cut-off Wheel 350*2.5*32mm: 2 pcs

Pipe Clamp: 4 pcs

Wrench 24-27mm: : 1 pc

Wrench 36mm: 1 pc

Inlet Pipe: 1 pc

Outlet Pipe: 1 pc

Optional Delivery

Aluminum Oxide Cut-off Wheels: A060/A050/A030

Cutting Fluid: CF-1L/CF-4L

Vertical Fixture: MS-VF
