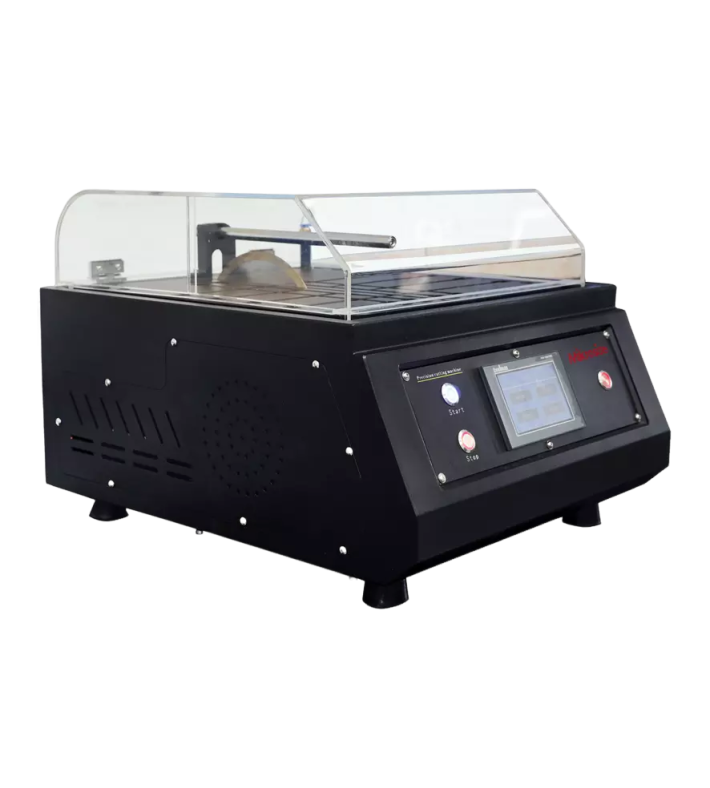

Mikrosize iCut-40P Metallographic Precision Flat Cutting Machine (500~3000r/min)

Cutting Method: Straight Line, Pulse

Display: 5 Inch Touch Screen

Impact Cutting Distance: 0.1-2mm/s

Max Cutting Capacity: 40mm

Manual Y-axis Movement Speed: 0.01-15mm/s

Auto Cutting Speed: 0.01~3.00mm/s (Adjustable Step Size 0.01)

Cut-off Wheel Rotation: 500~3000r/min

Max Travel: Y-axis 200mm

Cut-off Wheel Size: 200*32*1mm

Power: 600W

Power Source: 200V 50Hz

Dimensions: 530*600*410mm

Net Weight: 80kg

STANDARD DELIVERY

Mainframe: 1 set

Outlet Pipe: 1 pc

Inlet Pipe: 1 pc

Wrench: 1 pc

Allen Wrench: 1 pc

Water Pump: 1 pc

Cutting Fluid: 1 pc

Diamond Cut-off Wheel: 1 pc

Water Tank: 1 pc

OPTIONAL DELIVERY

CBN Cut-off Wheel: CBN-M

Aluminum Oxide Cut-off Wheels: A060/A050/A030

Cutting Fluid: CF-1L/CF-4L

Quick Fixture: MS-QF

Vertical Fixture: MS-VF
