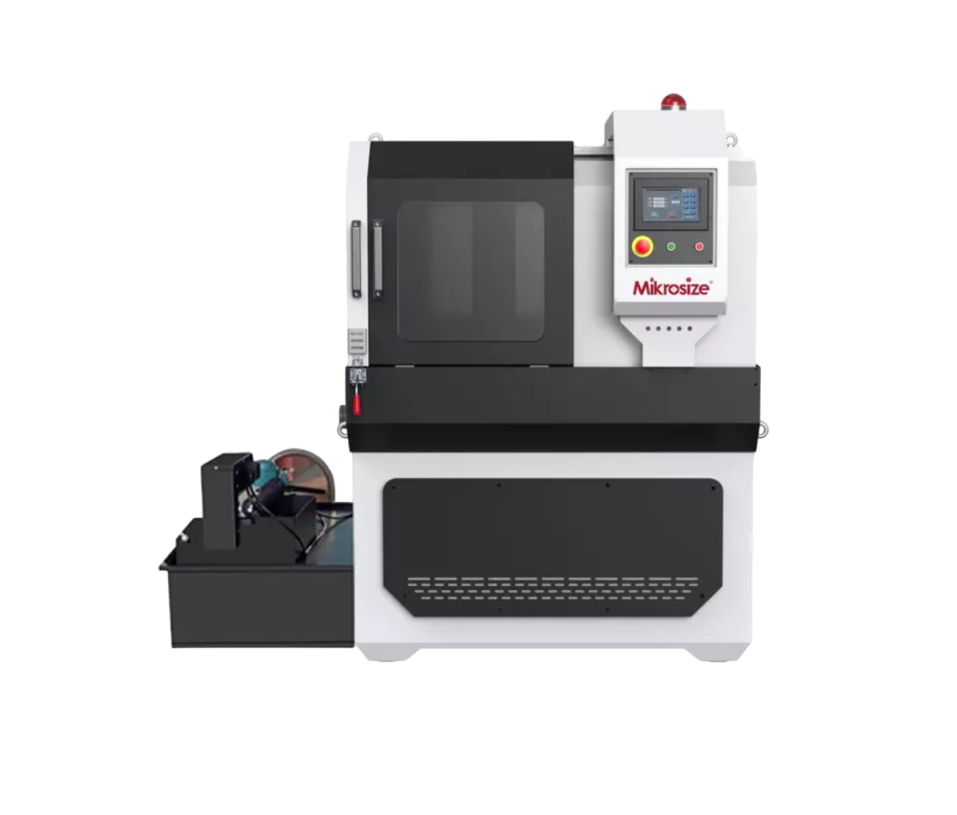

Mikrosize iCut-110A Abrasive Metallographic Automatic Cutting Machine (0.01-1mm/s, Φ110 mm, 2800rpm)

Max Cutting Diameter: Φ110 mm

Cutting Method: Chop cutting, flat push cutting, sweep cutting

Cutting Speed: 0.01-1mm/s（adjustment step 0.01）

Reset Mode: Automatic

Control System: Siemens PLC 7”touch LCD screen

Rotation Speed: 2800rpm

Max Stroke: Z-axis 130mm；Y-axis 200mm；X-axis 100mm

Working Table Size: 128*320mm, 180*320mm

Cutting Disc: 350*2.5*32mm

Motor: 4kw

Voltage: AC380V±10% , 50-60Hz

Machine Dimension: 1350*1100*1750mm（L×W×H）

Net Weight: 707.5kg

Standard Delivery

Machine Mainframe(with clamp): 1 set

Water Tank (with water pump): 1 pc

Cut-off Wheel 400×4×32mm: 2 pcs

Clamp: 1pc

Outlet Pipe: 1pc

Inlet Pipe: 1pc

Pipe Hoop: 2 pcs

Wrench: 3 pcs

Optional Delivery

Aluminum Oxide Cut-off Wheels: A060/A050/A030

Cutting Fluid: CF-1L/CF-4L

Vertical Fixture: MS-VF
