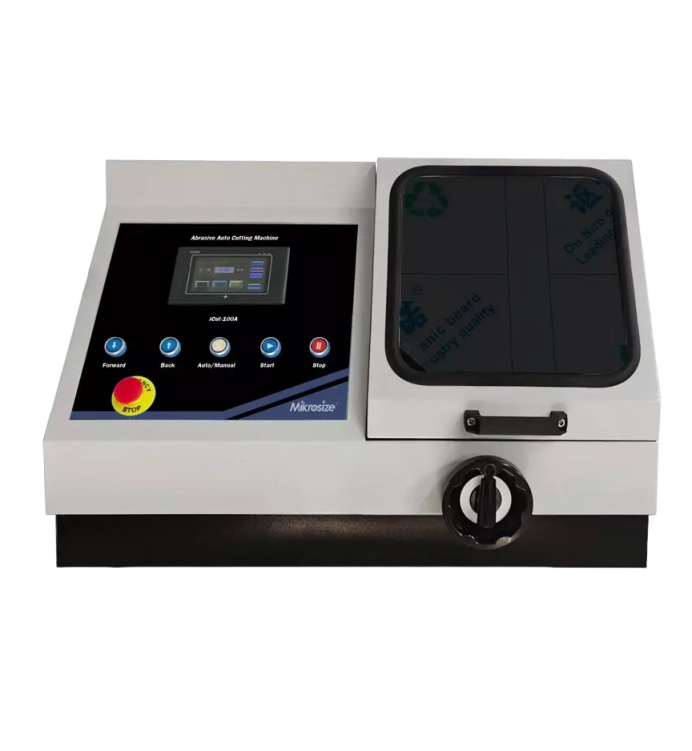

Mikrosize iCut-100A Metallographic Abrasive Cutting Machine (3.3KW / 2100rpm / 50L)

Cutting Capacity: 100mm（Pipe）

Cutting Depth Tracking: LCD Digital Display

Platform Y-axis Movement: 200mm

Cutting Table Size: 280X310mm

Cut-off Wheel: 350X2.5X32mm

Clamping Table: Divided Into Left And Right, With Central Cutting Edge

Cutting Method: Manual/automatic

Feeding Method: Adjustable (Manual, Automatic)

Cutting Speed:

Maximum 0.25mm/s, Automatic Cutting Mode Can Be

Selected: Intermittent Cutting (Metal Workpiece) And

Continuous Cutting (Non-metal Workpiece)

Feed Distance: Set As Needed

Reset Method: Automatic Reset

Cooling System: Automatic

Water Tank Capacity: 50L

Spindle Speed: 2100rpm

Motor Power: 3.3KW

Machine Type: Desktop

Machine Dimension: 887X795X600mm

Power Supply: 380V

Gross Weight: 220 kg

Standard Delivery

Machine Mainframe: 1 set

Water Tank: 1 pc

Cut-off Wheel 350×2.5×32mm: 2 pcs

Outlet Pipe Ø32×1.5m: 1 pc

Inlet Pipe Ø25×1.5m: 1 pc

Hose Clamp: 4 pcs

Wrench 24-27mm: 1 pc

Wrench 36mm: 1 pc

Optional Delivery

Aluminum Oxide Cut-off Wheels: A060/A050/A030

Cutting Fluid: CF-1L/CF-4L

Vertical Fixture: MS-VF
