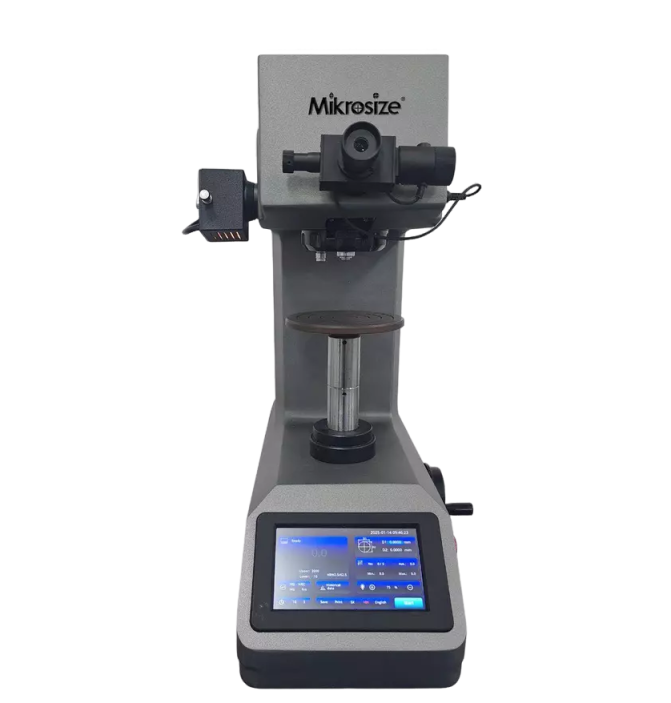

Mikrosize iBrin-62.5 Digital Low Load Brinell Hardness Tester (8~650HBW)

Test Range: 8-650HBW

Test Force: 1kgf, 2.5kgf,5kgf, 6.25kgf, 10kgf, 15.625kgf, 31.25kgf, 62.5kgf

Test Force Application: Fully Automatic (Loading/Holding/Unloading)

Turret: Automatic

Test Magnification: 50X, 100X

Test Height: 175mm

Test Throat: 125mm

Hardness Reading: LCD Display

Power Supply: AC220V, 50Hz

Executive Standards: GB/T231.2, ISO6506-2, ASTM E10

Machine Dimension: 320*580*620mm

Net weight: 65KG

Standard Delivery:

Mainframe: 1 pc

10X Eyepiece: 1 pc

Φ150mm Test Anvil: 1 pc

Φ58mm Test Anvil: 1 pc

Φ58mm V-shape Test Anvil: 1 pc

Φ1mm Hard Alloy Indentor: 1 pc

Φ2.5mm Hard Alloy Indentor: 1 pc

Hard alloy ball Φ1mm;Φ2.5mm: Each 1pc

HBW2.5/62.5 Hardness Block: 1 pc

HBW1/10 Hardness Block: 1 pc
