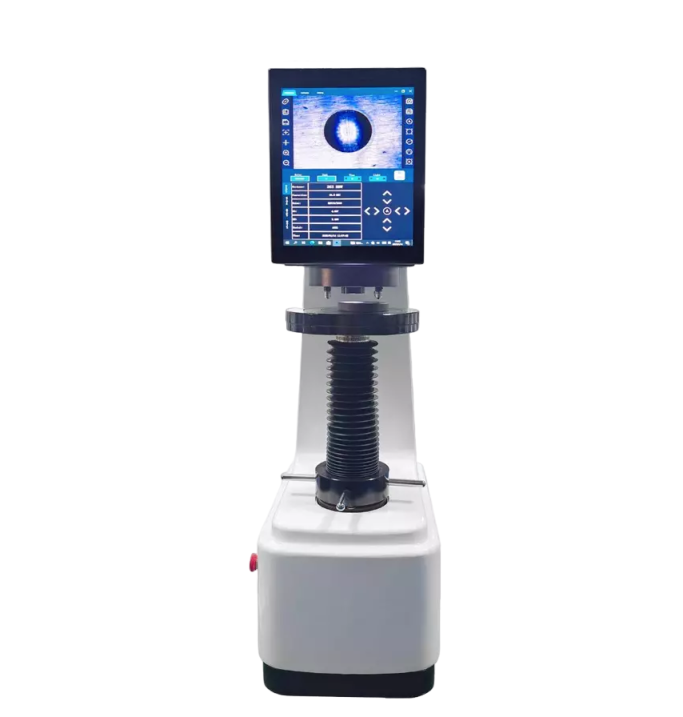

Mikrosize iBrin-3000SA5 Intelligent Semi-auto Brinell Hardness Tester (8~650HBW)

Test Force:

31.25kg、62.5kg、100kg、125kg、187.5kg、250kg、500kg、750kg、1000kg、1500kg、3000kg

306.45N、612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、9807N、14710N、29420N

Hardness Scales: HBW2.5/31.25、HBW2.5/62.5、HBW2.5/187.5、HBW5/31.25、HBW5/62.5、HBW5/125、 HBW5/250、HBW5/750、HBW10/100、HBW10/125、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500、HBW10/3000

Conversion Scales: HRA、HRB、HRC、HRD、HS、HV、HK、HBW、HR15N、HR30N、HR45N

Test Range: 8~650HBW

Loading Method: Automatic Loading/Dwelling/Unloading

Test Height: 280x220mm (Height x Throat)

Main Test Force Loading: 5~8s Time

Dwelling Time: 0~99s

Turret: Automatic

Optical Magnification: Objective Lens: 1X、2X, Camera: 20X, Total: 20X、40X

Indentor Size(mm): Φ2.5、Φ5、Φ10 All Installed in Turret

Indention Measuring: ±0.8% Repeatability

Data Display: Industrial Touch Screen

Data Output: Output Report in WORD and EXCEL Formats, Printable Output

Illumination: LED

Communication interface: USB、RJ45LAN、WLAN、RS232

Machine Dimensions: 1000*595*350mm

Power Supply: AC220V/110V±5%，50~60Hz

Net Weight: 210KG

Standard Delivery

Mainframe: 1 pc

Φ2.5mm Brinell Indentor: 1 pc

Φ5mm Brinell Indentor: 1 pc

Φ10mm Brinell Indentor: 1 pc

Big Test Anvil: 1 pc

Small Test Anvil: 1 pc

V-shape Test Anvil: 1 pc

1X、2X Objective Lens: Each 1 pc

Brinell Hardness Block: 2 pcs
