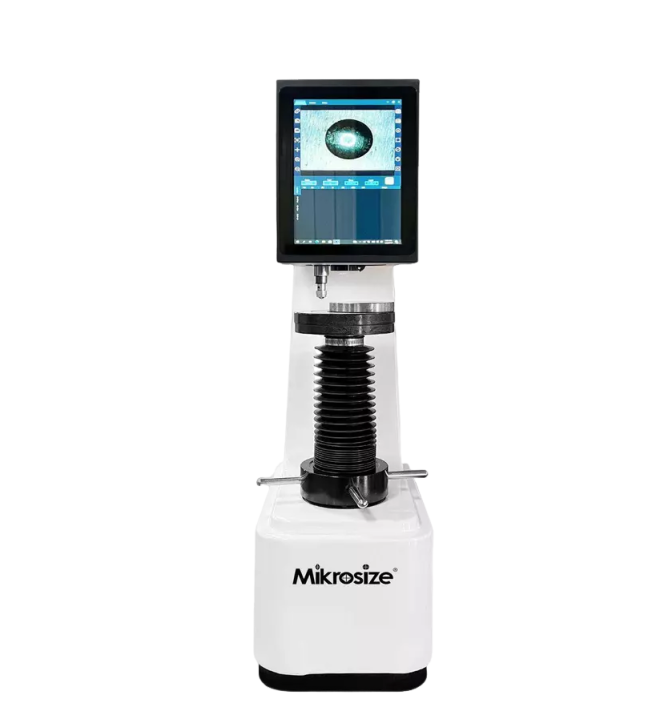

Mikrosize iBrin-3000SA Intelligent Semi-auto Brinell Hardness Tester (8 ~ 650HBW)

Model: iBrin-3000SA2 (1 Indentor+2 Objective Lens)

Test Range: 8~650HBW

Test Force: 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf

612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 8907N, 14710N, 29420N

Hardness Scale:

HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5

HBW5/31.25, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750

HBW10/100, HBW10/125, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Indenter: Φ2.5mm、Φ5mm、Φ10mm

Camera Lens: 20X

Objective Lens: 1X, 2X

Test Height: 280mm

Test Throat: 150mm

Dewelling Time: 0~99s

Hardness Reading: Read the hardness value on the digital display touch - screen LCD.

Turret: Automatic

Communication Interface: USB、RJ45LAN、WLAN、RS232

Power Supply: AC220V，50Hz

Dimensions: 230*600*920mm

Net Weight: 130kg

Standard Delivery:

Mainframe: 1 pc

Φ230mm Test Anvil: 1 pc

Φ78mm Test Anvil: 1 pc

60*90mm V-shape Test Anvil: 1 pc

Φ2.5mm Brinell Indentor: 1 pc

Φ5mm Brinell Indentor: 1 pc

Φ10mm Brinell Indentor: 1 pc

Φ2.5mm、Φ5mm、Φ10mm Hard Alloy Ball: Each 1 pc

HBW10/3000 Hardness Block: 1 pc

HBW10/1000 Hardness Block: 1 pc

1X Objective Lens: 1 pc

2X Objective Lens: 1 pc
