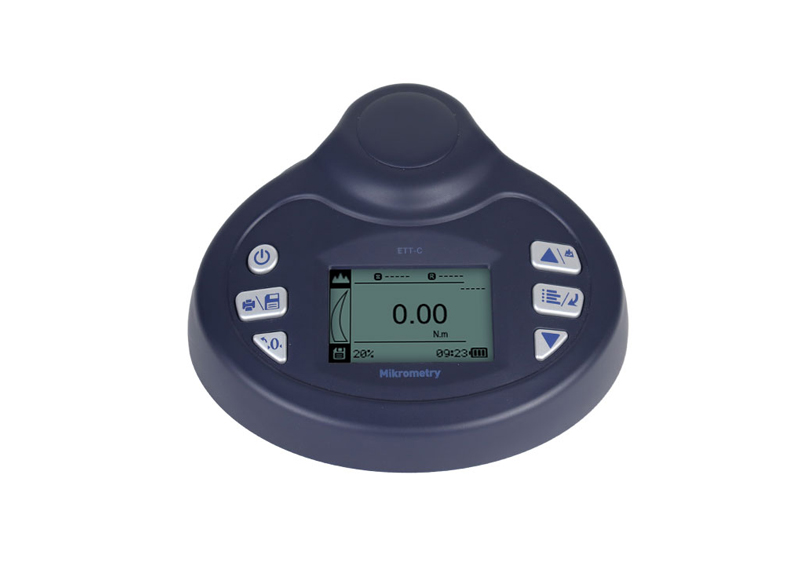

Mikrometry ETTC Professional Digital Torque Indicator

Accuracy: ± 0.3% Readings + sensor

Selectable Units: N.m、N.cm、kgf.cm、lbf.ft、lbf.in

Display: 240*160 dot matrix LCD(3.1 inches) with LED Backlight

Overload Capacity: 120% of F.S.

Measurement Mode: Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak、Pulse

Display Mode: Digital / Curve

Data Sampling Rate: Up to 16KHz (adjustable)

Memory: 1000 data

SetPoint: Programmable high and low limits

Power: 3.6VDC 1600mAH Ni-Mh rechargeable batteries

Battery Life: Approx. 25 hours for continuous use

Charger / Adaptor: Universal USB/BM charger, Input:110~240VAC

Temperature Effects: <0.03% FS per °C

Communication: USB or RS-232

Software: Free software for USB communication

Outputs: RS-232, "Within" set point output， "Under or over" set point output

Operating environment: Temperature: -10 to 40°C; Relative Humidity: 20 to 80%

Storage environment: Temperature: -20 to +50°C; Relative Humidity: 5 to 90%

Accessories: AC adapter/charger, USB cable, Square drive adaptor

Options: Mini-printer, RS-232 Cable, Rundown Adapter, ETS-TT1 Torque Test Stand, ETS-TT2 Torque Test Stand.
