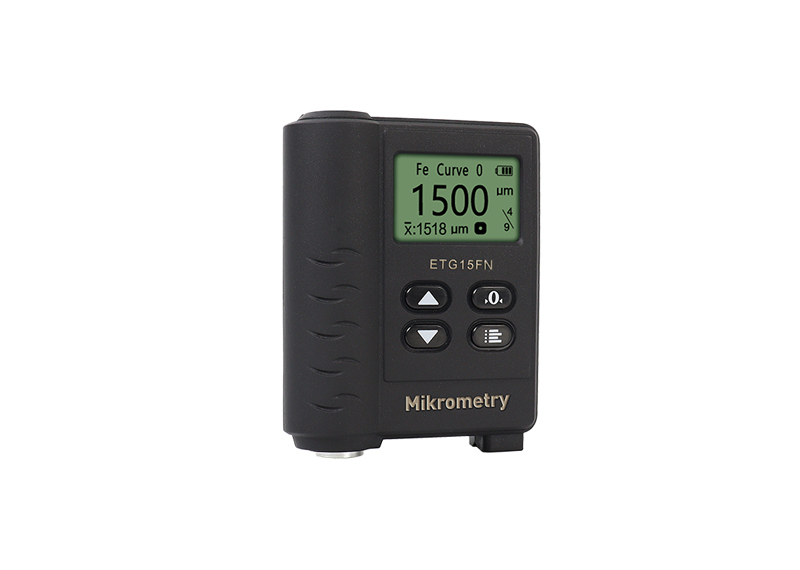

Mikrometry ETG15FN Eddy Current Digital Coating Thickness Gauge (0-1500um(0-60mil))

Test Method: Magnetic induction & Eddy current

Measuring Range: 0-1500um(0-60mil)

Resolution: 0-999um:0.1um; ≥1000um:1um

Accuracy: 0-100um:±1.5um; 101-1500um:≤1.5%

Data Memory: 1500 readings

Interface: USB data transmission (with PCB software)

Display: Dot matrix LCD screen with backlight (128X64)

Operating Temperature: 0-50℃

Power Supply: 1.5V*3 (AAA alkaline batteries)

Dimension: 88*67*30 mm

Weight: 120 g

Matrix: Iron matrix, aluminum matrix

Standard content of shipment

Thickness gauge, Substrate plate, Certification foils set, 3 AAA alkaline batteries, Data cable, Data logger software, Leather sheath, User's manual, Manufacturer's certificate.
