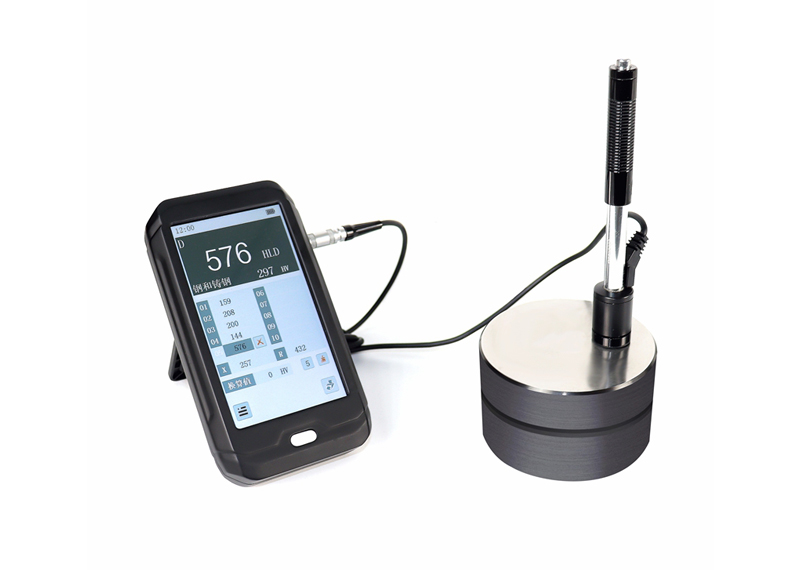

Mikrometry EHP210 Leeb Digital Hardness Tester (170～960HLD)

HL display range: 170～960HLD

Repeatability: 6HLD

Testing direction: All direction

Optional Impact Device: D, DC, DL, D+15, C, G

Display: 5” 854*400(with touch screen), Bright and clear LCD display with backlight

Operating voltage: 3.6V (rechargeable 800 mAh Ni-MH battery)

Charging power supply: DC5V/1A

Operating environment:

- Temperature ：-10°C～+40°C

- Humidity:20%～85%: Storage environment

Storage environment

- Temperature：-30°C～+80°C

- Humidity: 5%～95%

Dimensions: 151mm*85mm*27mm

Weight: 255g (include D type impact device)

Accessories: Display Unit, Impact Device D, Test Block, Charger, Little Support Ring, Cleaning Brush USB Cable, PC Software CD.

Communication: USB to PC for transfer data

Optional: Mini thermal printer with RF wireless (Cable no needed)

Data sheet:
