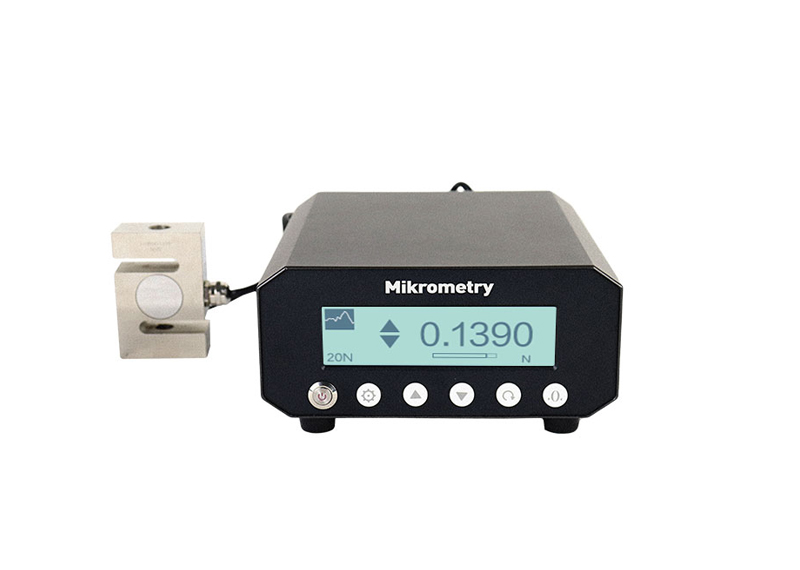

Mikrometry EFGH Advanced Force Indicator

Accuracy: 0.03% F.S + sensor

Resolution: Up to 1/100000, Resolution settable

Display: 256*64 dot matrix LCD(4 inch) with LED Backlight

Overload Capacity: 150% of F.S. (LCD blinks beyond 110%)

Measurement Mode: Track, Peak

Data Sampling Rate: 1KHz

Display Update Rate: 10 times/second

Memory: 1000 data

Power adaptor: Input:110~240VAC,50/60HZ,DC 5V 1A

Set Point: Programmable high and low limits

Temperature effects: 10ppm

Communication: USB or RS-232

Software: Free software for USB communication

Outputs: RS-232, "Within" set point output, "Under or over" set point output

Storage environment: Temperature: -20 to +50°C; Relative Humidity: 5 to 90%

Dimension: 195*170*87.5mm

Weight: 1.4Kg

Accessories: DC 5V 1A power adapter
