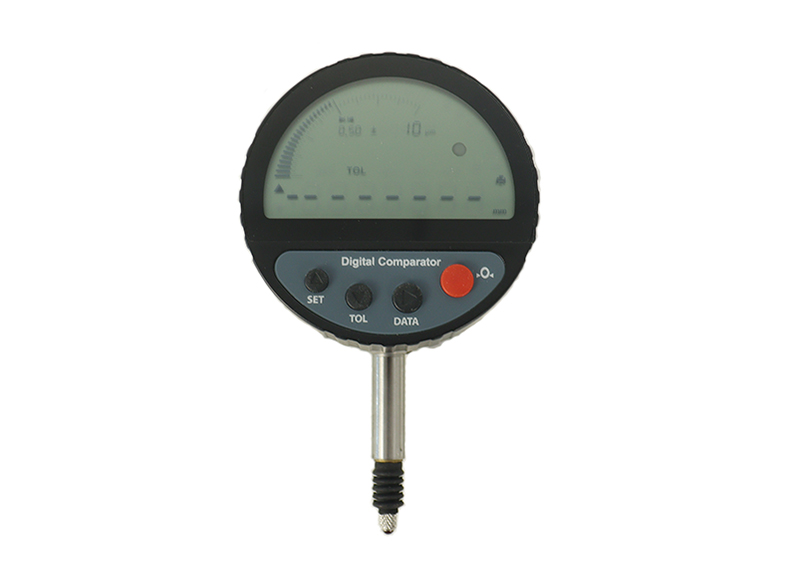

Mikrometry EDC2000 Inductive Digital Comparator (2/0.0787" (mm/inch))

Measuring Span: 2/0.0787" (mm/inch)

Resolution: 0.0001/0.000005"(mm/inch)

Total Stroke: 4 mm

Measuring force: 0.7~0.9 N

Measuring principle: inductive

Display: High contrast LCD

Contact point: Ruby

Mounting shaft: 8 mm

Battery: Built-in Li-ion rechargeable batteries

Continuous working time: approx. 12 h

Charging time: approx. 3h

Protection class: IP 54

Operating temperature: +5°C to +40°C

Storage temperature: –10°C to +60°C

Data Interface: USB

Weight: 185 g

Inductive Digital Comparator EDC2000 Accessories:

- Measuring force springlug back

- Manual lifter with cable release

- Ceramic contact point

- Tungsten carbide contact point

Inductive Digital Comparator EDC2000 Package Contains:

- lnstruction manual

- QC pass

- USB charger

- USB cable

- Case
