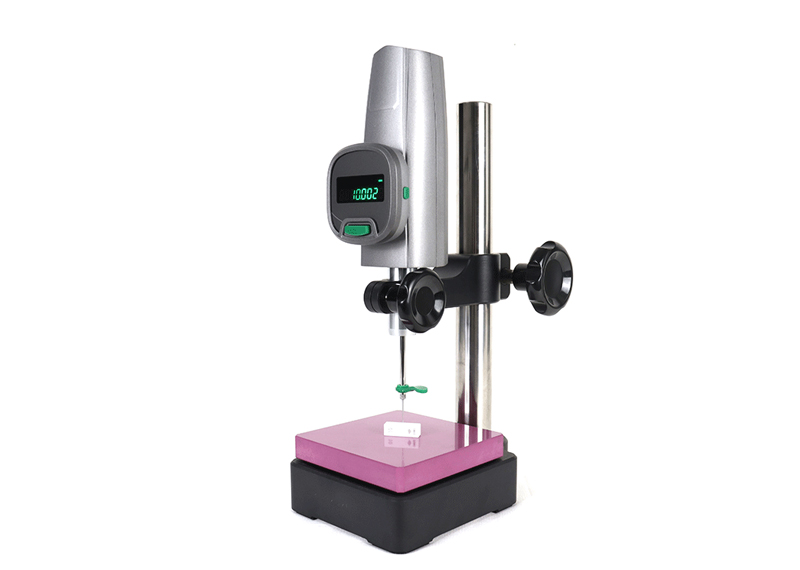

Mikrometry DHG-050N Precision Height Gauge (0-50 mm)

Measurement: 0-50 mm

Accuracy(20℃): ≤3μm

Repeatability(20°C): 1μm

Minimum Readout: 1μm

Response Speed: Max 5000mm/s

Measuring Force: 0.8-1.2N

External Output: USB

Displayer: 7bits High Brightness Green LED

Probe: Ball, Flat, Conical

Unit: mm/inch

Operating Environment:

- Temperature:0-40℃

- Humidity:20-80%

Table Size: 130x130mm

Power Adaptor: AC:100-240V 50/60Hz, Output: DC 5V/1A

Standard Accessories: Stand, Ball Tip, Flat Tip, Conical Tip

Optional Accessories: Special-shaped Tips, Low Measuring Force Device, Portable battery, Foot Switch

Size: 200x138x397 mm

Weight: 11.6kg
