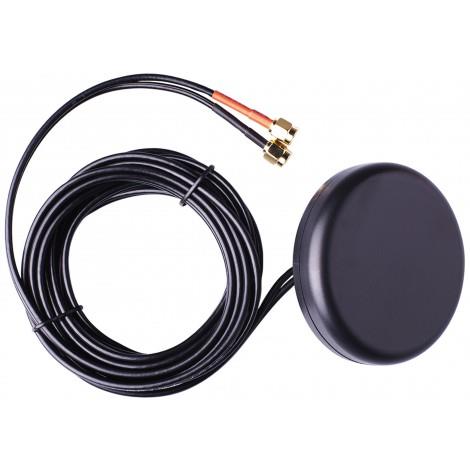

Mikroe MIKROE-3376 MIMO GPS/3G External Antenna

Gain: 5 dBic

VSWR: 1.5:1, 2:1

Style: Round

Length: 15 mm

Diameter: 75 mm

Bandwidth: 10 MHz, 20 MHz

Impedance: 50 Ohms

Cable Type: 3 M Coax x 2

Cable Length: 3 m

Polarization: RHCP

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 2 Band

Center Frequency: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 1575.42 MHz

Mechanical Style: Module

Ground Plane Size: 7 cm x 7 cm

Maximum Frequency: 2.1 GHz

Minimum Frequency: 850 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS
