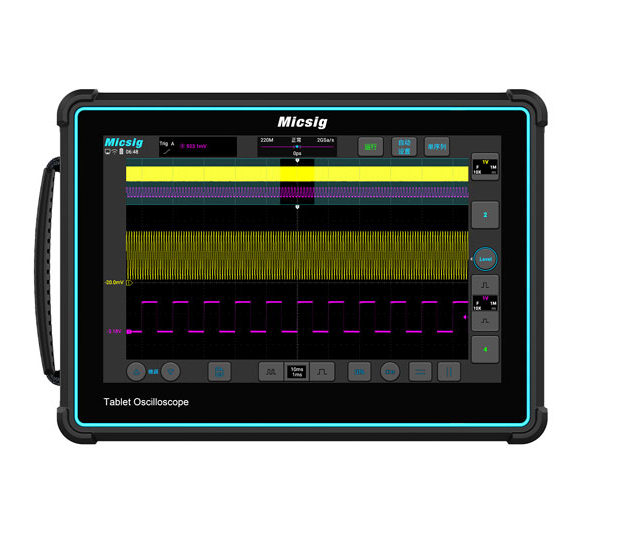

MICSIG TO2004 GEN 4 Tablet Oscilloscope (200MHz; 4CH; 2GSa/s)

Bandwidth: 200MHz

Rise Time: ≤1.75ns

Analog channels: 4

Real-time sampling rate: 2GSa/s

Memory Depth: 220Mpts

Max. waveform capture rate: 300,000 wfms/s

Input sensitivity range: 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 1V/div (50Ω)

Bandwidth Filter: 20MHz, High Pass / Low Pass (to 30Hz)

Segmented Storage: Support，capture max 10,000 waveform events

Input impedance: 1MΩ/50Ω

Timebase range: 1ns/div ~ 1ks/div

Trigger types: Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video

Bus decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out

Storage: 32G

Display: 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids

Battery: 7.4V, 7500mAh Li-Ion battery

Dimension / Net Weight: 265*192*50mm / 1.9kg（with battery）
