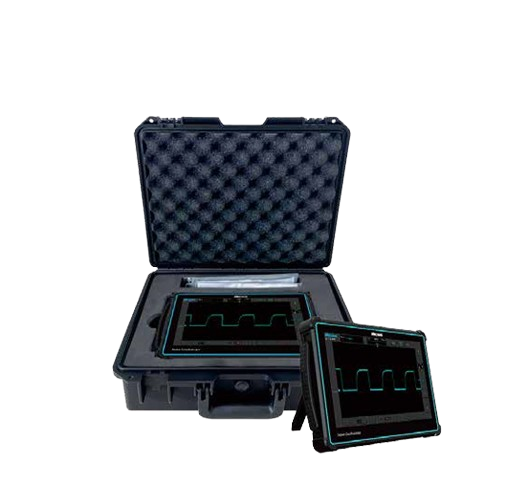

MICSIG TO2002kit-Case Tablet Oscilloscope (200MHz, 2CH, 1GSa/s, with suitcase)

Bandwidth: 200MHz

Rise Time: ≤1.75ns

Analog channels: 2

Real-time sampling rate: 1GSa/s

Memory Depth: 110Mpts

Max. waveform capture rate: 78,000 wfms/s

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger out

Vertical resolution: 8 bit

Storage: 32G

Display: 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids

Battery: 7.4V, 7500mAh Li-Ion battery

Dimension / Net Weight: 265*192*50mm / 1.9kg（with battery）

Suitcase: PP hard-shell, EVA foam, optional for tablet scope and automotive scop
