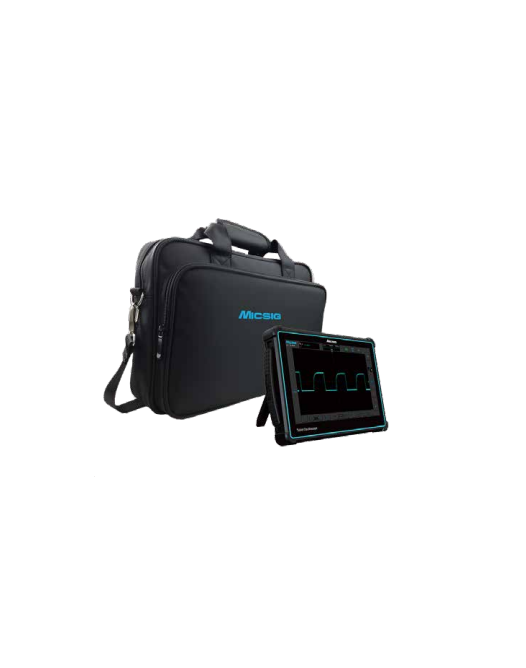

MICSIG TO1004kit-HB Tablet Oscilloscope (100MHz, 4CH, 1 GSa/s, with handbag)

Bandwidth: 100MHz

Rise Time: ≤3.5ns

Analog channels: 4

Real-time sampling rate: 1GSa/s

Memory Depth: 110Mpts

Max. waveform capture rate: 78,000 wfms/s

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger Out

Vertical resolution: 8 bit

Storage: 32G

Display: 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids

Battery: 7.4V, 7500mAh Li-Ion battery

Dimension / Net Weight: 265*192*50mm / 1.9kg（with battery）

Handbag Black nylon canvas, suitable for all Micsig oscilloscopes

Manual

Datasheet
