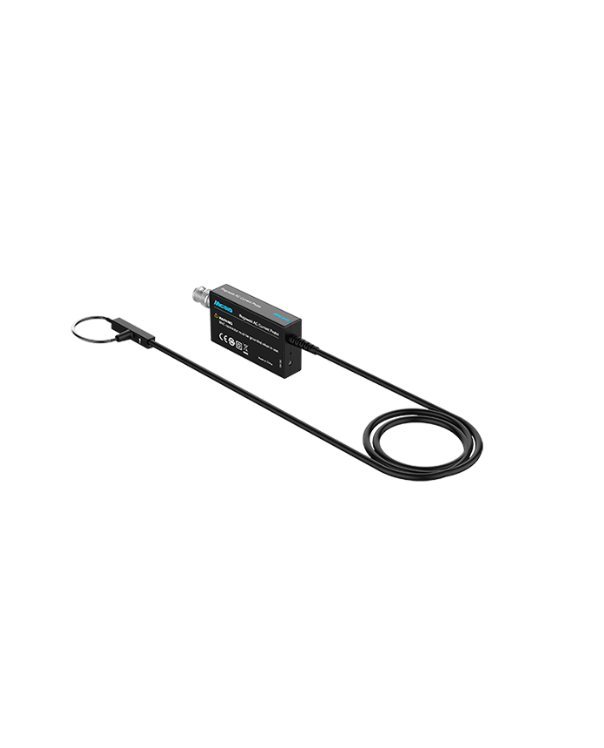

MICSIG RCP6000XS Rogowski AC Current Probe (2Hz - 30MHz, 6000Apk, 1mV/A , 1000X)
ManufacturerMICSIG (View more products from this manufacturer)
ModelRCP6000XS
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth: 2Hz~30MHz
Peak Current: 6000Apk
Output Sensitivity: 1mV (1000X)
Accuracy (typical): 2%
Peak Di/dt: 70kA/µs
Droop (%/ms): 2%/ms
Output Noise: <5mVpp
Peak Coil Isolation Voltage: AC 1kVrms (1 min) (50Hz/60Hz) (Rogowski coil part only)
Wire Length (integrator to Rogowski coil): 1.5m (customizable)
Coil Inner Diameter: 25mm (customizable)
Coil Circumference: 80mm (customizable)
Coil Cross-section Diameter: Approx. 1.6mm
Interface: 1MΩ BNC
