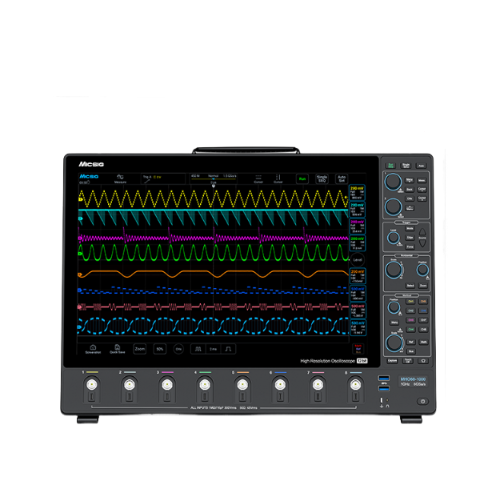

MICSIG MHO68-1000 High Resolution Oscilloscope (1 GHz, 8CH, 6GSa/s)
ManufacturerMICSIG (View more products from this manufacturer)
ModelMHO68-1000
USD 18,000.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwith(-3dB)@50Ω: 1GHz
Bandwith(-3dB)@1MΩ: 500MHz
Rise time @ 50Ω: ≤ 0.4ns
Analog channels: 8
Sampling rate: 6GSa/s
Memory depth: 1.8Gpts
Waveform capture rate: 280,000 wfms/s
Interface: USB 3.0/2.0 Host, USB Type-C, LAN, HDMI, Aux In/Out, 10 MHz clock signal In/Out
Vertical resolution: 12 bit
Input impedance: 1MΩ±1%，15pF±3pf||50Ω ±1%
Display: 16" TFT LCD touch screen, 1920*1200 resolution
Dimension/ Net weight: 443.6*307.2*37.6mm / 5.5kg
*For detailed specifications, please refer to the Datasheet.
