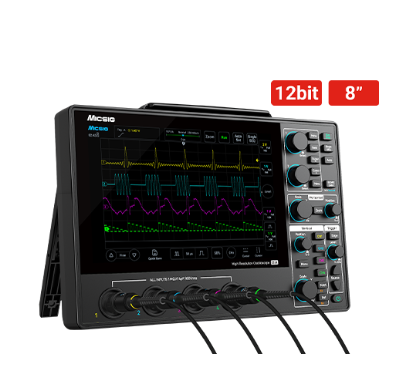

MICSIG MHO14-100N GEN 6 High Resolution Tablet Oscilloscope (100MHz, 4CH, 1GSa/s)
ManufacturerMICSIG (View more products from this manufacturer)
ModelMHO14-100N
USD 666.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth: 100MHz
Rise Time: ≤3.5ns
Analog channels: 4
Real-time sampling rate: 1GSa/s
Memory Depth: 110Mpts
Max. waveform capture rate: 50,000wfms/s
Vertical Resolution: 12bit
Interfaces: USB 3.0 Host, USB Type-C, LAN, HDMI
Display: 8" TFT LCD capacitive touch screen, 1280*800 pixels
Battery: 3.7 V, 16000mAh Lithium-ion battery
Charging: Standard DC 12V adapter, supports Type-C charging
Dimension: 265*174*31mm（Width x Height x Thickness）
*For detailed specifications, please refer to the datasheet.
