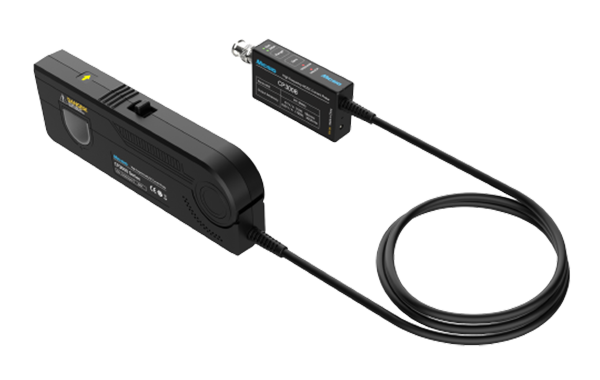

MICSIG CP3008 High frequency AC/DC current probe (DC~8MHz)

Bandwidth: DC ~ 8 MHz

Rise Time: ≤ 43.75 ns

Range: 50 Arms (50 A), 300 Arms (300 A)

Max. Current Input: 500 Apk, 300 Arms

Accuracy (Max continuous current @ DC and 45–65 Hz): ±1% ±10 mA (50 A), ±1% ±100 mA (300 A)

Resolution: 10 mA (50 A), 100 mA (300 A)

Noise: ≤ 3.5 mArms p-p (50 A), ≤ 3 mArms p-p (300 A)

Delay: ≤ 4 ns (50 A), ≤ 4 ns (300 A)

Output Sensitivity:

1 V / 10 A (50 A, 10×)

1 V / 100 A (300 A, 100×)

Overcurrent Alarm Value: ≥ 50 Apk (50 A), ≥ 500 Apk (300 A)

Power Supply: 12 V

Max. Working Voltage: CAT I 300 V

Max. Floating Voltage: CAT I 300 V

Jaw Diameter: 20 mm
