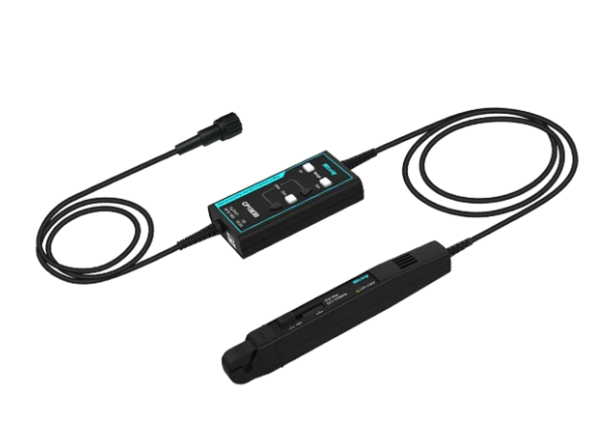

MICSIG CP1003B High Frequency AC / DC Current Probe (100MHz, 5Arms/30Arms)

Bandwidth: 100MHz

Rise Time: ≤3.5ns

Range: 5Arms (5A), 30Arms (30A)

Max. Current Input: 50Apk, 100Apk-pk, 30Arms

Accuracy (Max continuous current @ DC and 45-66Hz): ±1% ±1mA (5A), ±1% ±10mA (30A)

Lowest Measurable Current: 1mA (5A), 10mA (30A)

Noise: < 4mApp (5A); <30mApp (30A)

Delay: < 6.5ns (5A); < 8.5ns (30A)

Output Sensitivity: 1V/1A (5A, 1X); 1V/10A (30A, 10X)

Overcurrent Alarm Value: ≥ 7Apk (5A); ≥ 50ApK (30A)

Power Supply: DC 12V

Max Working Voltage: CAT I 300V

Max. Floating Voltage: CAT I 300V

Max. Conductor Diameter: 5mm

Interface: Universal BNC
