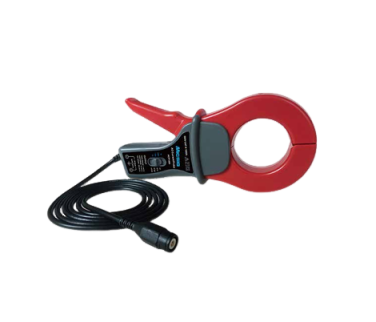

MICSIG ACP1000 AC Current Probe (10Hz-100kHz; 0.1Apk-1000Apk)
ManufacturerMICSIG (View more products from this manufacturer)
ModelACP1000
USD 232.20
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Input: 0.1-10A; 0.1-100A; 1-1000A
Rated output: 100mV/A; 10mV/A; 1mV/A
Frequency (Hz): 10Hz-100kHz
Rated Burden: ≥100kΩ
Accuracy grade: 3%±10mV; 2%±5mV; 1%±1mV
Current Range: 0.1A-1000A
Max. Working Current: 2000A (2s)
Maximum Accuracy: 1%
Safety Class: CAT III 600V
Max. Conductor Diameter: 52 mm
Dimensions: 111*216*45mm
