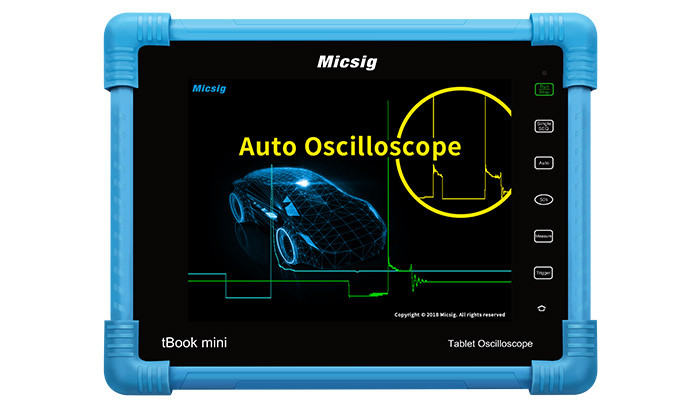

MICSIG ATO1102 Digital Automotive Tablet Oscilloscope (2 CH, 100MHz, 1GSa/S)

Bandwith: 100MHz

Analog Channel : 2

Real time sample rate: 1GSa/S（single channel）

Memory depth: 28Mpts（single channel）

Support test: Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (including CAN, LIN, Flexray, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.)

Bandwith limitation: Full bandwidth, low pass

I/O port: Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power

Display: 8" Industry TFT LCD touchable capacitive screen, resolution: 800*600 pixels, 14*10 grids

Dimension: 250*200*55mm
