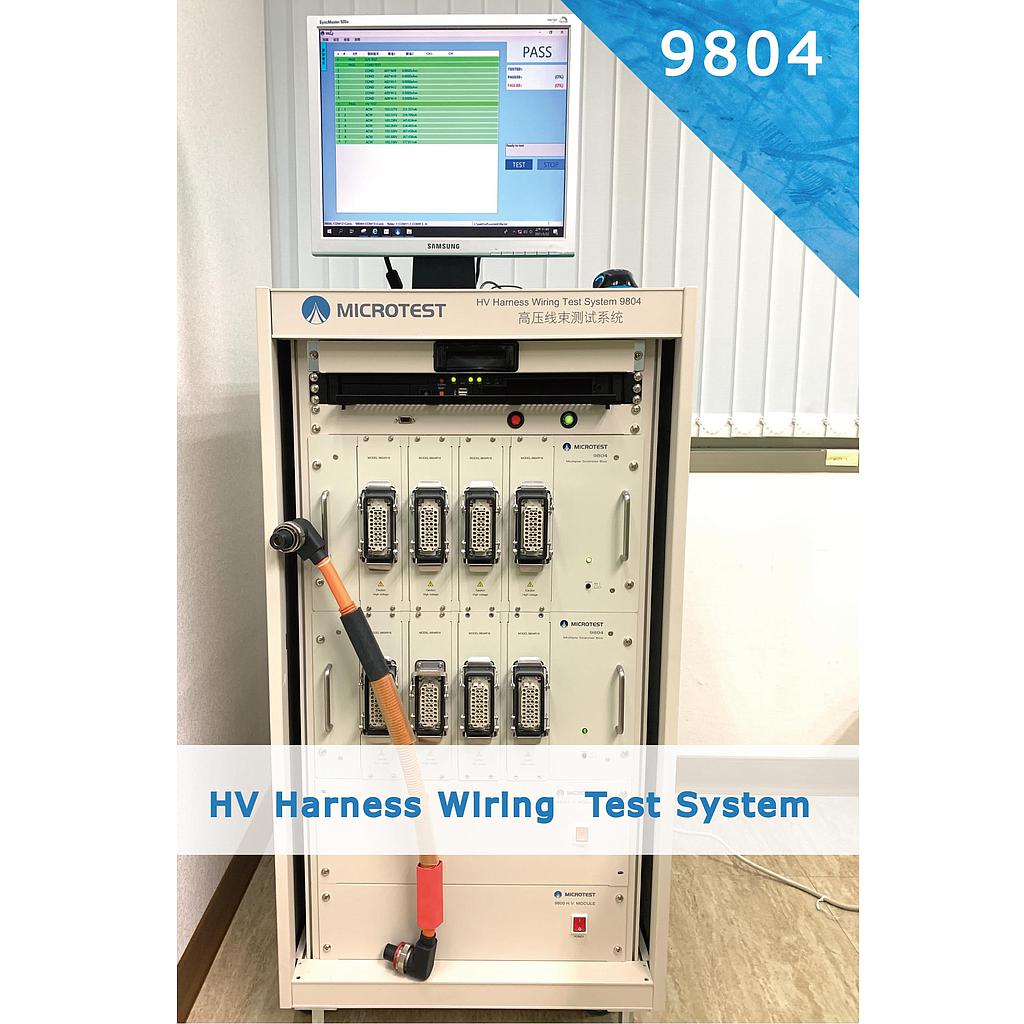

MICROTEST 9804 High Voltage Wiring Harness Test System (10-3500VAC; 10-5000VDC)
ManufacturerMICROTEST(View more products from this manufacturer)
Model9804
OriginTaiwan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
High voltage module test
AC Hi-pot voltage: 10V-3500V
AC Leakage current: 30mA
DC Hi-pot voltage: 10V-5000V
DC Leakage current: 10mA
Insulation voltage: 10V-1000V
Insulation resistance: 1-12000MΩ
Low voltage module test
Conductance: 1mΩ-52Ω
Open/Short test: 2kΩ-100kΩ
Intermittence conductance: 1mΩ-52Ω
Intermittence O/S: 2kΩ-100kΩ
Quick intermittence open circuit: 2kΩ-100kΩ
Component test
Resistance test: 50mΩ-20MΩ
Capacitance test: 10pF-3F
Diode test: 0-6.8V
