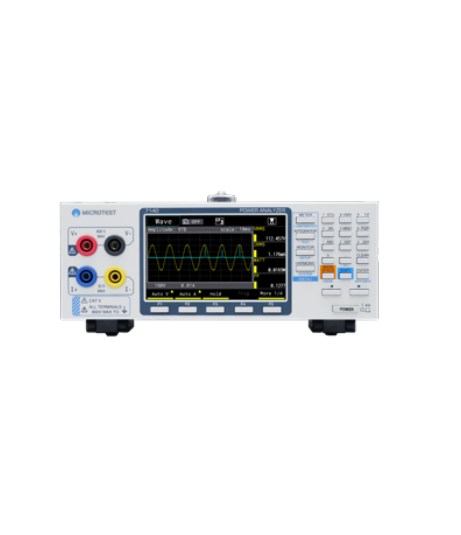

MICROTEST 7140 Power Analyzer (DC, 0.2 Hz–100 kHz, 100th-order harmonic)

Frequency Range: DC, 0.2 Hz–100 kHz

Basic Measurement Accuracy: ±0.05%

Sampling Rate: 500 kSPS

Meter Mode: Yes

Harmonic Analysis: 100th-order harmonic

Voltage and Current Waveform Display: Yes

Power Trend Graph: –

Harmonic Bar Chart: –

Supply Voltage: 100 VAC–240 VAC, 50–60 Hz

Power Consumption: 30 VA max

Display: 4.3" TFT, 800 × 480

Remote Control Input/Output Signal: USB, RS-232, Ethernet 10/100M

Memory: USB disk, embedded flash

Operating Environment: Temperature 13 °C–40 °C; Humidity < 80% RH

Weight: 2.9 kg

Dimensions: 214 × 115 × 300 mm
