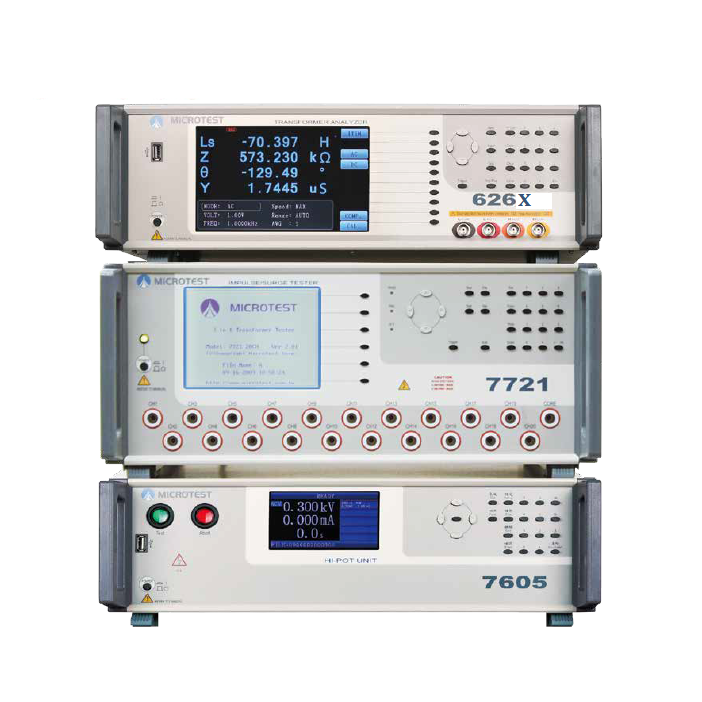

MICROTEST 6266, 7721, 7605 3 in 1 Comprehensive Transformer Testing System (500kHz; 21CH; 2CH)

6266 Transformer Tester

- Measurement parameters: Turn Ratio, Phase, L, Q, Leakage L, Balance, ACR, Cp, D, X, Y, DCR, Pin-Short

- Parameters measurement ranges

+ L, LK: 0. 1nH~9999.99H

+ C: 0.00001pF~999.99mF

+ Q, D: 0.00001 ~ 99999

+ Z, X, R: 0.00001Ω ~ 99.9999MΩ

+ Y: 0.01nS ~ 99.9999S

+ θ: -180°~ +180°

+ DCR: 0.01mΩ ~ 99.999MΩ

+ Turn Ratio: 0.01 ~ 99999.99turns

+ Pin-Short: 12 pairs, between pin to pin

- Built-in storage: testing files 128 sets

- Interface: RS-232, Handler, LAN, USB Host, EXT. I/O

- Power supply: Voltage 90Vac-125Vac or 190Vac-250Vac

Frequency: 47Hz-63Hz

- Max. frequency: 500kHz

- Display: 800*480 Color Screen, 7" TFT

- Dimension (W*H*D): 435x145x522 mm

- Weight: 9kg

7721 Impulse Winding Tester

- Channel: 21

- Impulse voltage (Programmable): 200-5000V

- Test items: Total area, area size comparison, Waveform comparison, Flutter, Corona

- Built-in Storage: 200 sets testing waveform

- Interface: RS-232, Remote, Printer

- Power supply: Voltage 115/230Vac ±15%

Frequency 50/60Hz ± 5%

- Display: 320*240, 5.7" dot-matrix

- Dimension (W*H*D): 435x190x522 mm

- Weight: 16 kg

7605 Hipot tester

- Channel: 2

- Measurement item: AC / DC / IR

+ Output voltage: 100V-5000V / 10V-6000V / 10-1000Vdc

+ Resolution: 1V / 1V / 1V

+ Accuracy: ±(3% of setting+5V) / ±(3% of setting+5V / ±(3% of setting+5V)

+ AC upper threshold: 0.001-31mA / 0.001-11mA / 1-12000MΩ

+ AC arcing detection: 1-20 / 1-10 / -

- Built-in storage: 30 sets setting files

- Interface: RS-232, Remote, USB Host/Device, EXT. I/O

- Power supply: Voltage 90Vac-264Vac

Frequency 50/60Hz±5%

- Display: 480*272, 4.3" TFT LCD

- Dimension (W*H*D): 365x145x430 mm

- Weight: 14 kg

Standard accessories

Power Cord

User Manual(CD)

Scan Box (F7721)

HV Test Cable

25Pin-25Pin cable

Remote Control Cable

24V Switch Power Supplier

Optional accessories

PC Link Software

RS-232 cable

Dual Scan Box (F7721-D)
