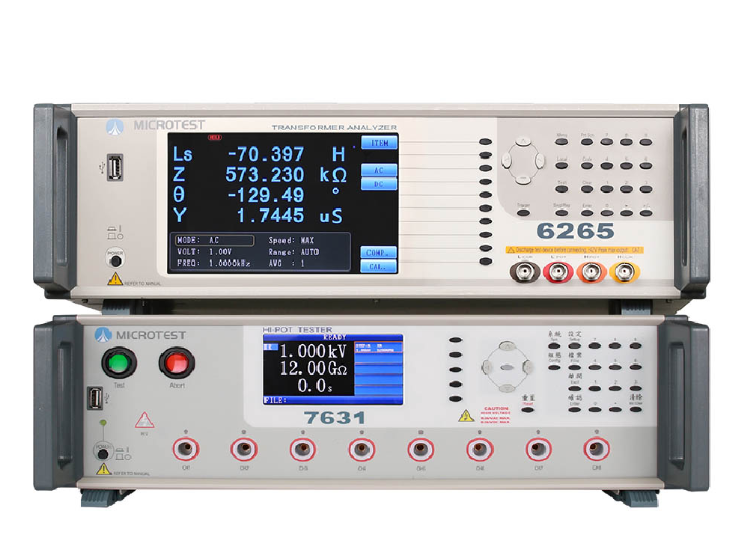

MICROTEST 6265+7631 2 in 1 Comprehensive Transformer Testing System (200kHz, 8CH)

Max. Frequency: 200kHz

Output Voltage:

AC 100V-5000V

DC 10V-6000V

IR 10V-1000Vdc

Parameters Measurement Ranges

L, LK 0. 1nH ~ 9999.99H

C 0.00001pF ~ 999.99mF

Q, D 0.00001 ~ 99999

Z, X, R 0.00001Ω ~ 99.9999MΩ

Y 0.01nS ~ 99.9999S

θ -180°~ +180°

DCR 0.01mΩ ~ 99.999MΩ

Turn Ratio: 0.01 ~ 99999.99turns

Pin-Short: 12 pairs, between pin to pin

Specification

Built-in stroage: testing files 128 sets

Interface: RS-232、Handler、LAN、USB Host、EXT. I/O

Power Supply: Voltage 90Vac-125Vac or 190Vac-250Vac

Fequency: 47Hz-63Hz

Display: 800*480 Color Screen, 7" TFT

Dimension (W*H*D): 435x145x522 mm

Weight: 9 kg

7631 Hipot tester

Channel: 8

Measurement item: AC/ DC/ IR

Output Voltage : 100V-5000V /10V-6000V/ 10-1000Vdc

Resoultion: 1V/ 1V/ 1V

Accuracy: ±(3% of setting+5V)/ ±(3% of setting+5V)/ ±(3% of setting+5V)

AC Upper Threshold: 0.001-31mA/ 0.001-11mA/ 1-12000MΩ

AC Arcing Detection: 1-20/ 1-10 -

Specification:

Built-in Storage: 30 sets setting files

Interface: RS-232、Remote、USB Host/Device、EXT. I/O

Power Supply: Voltage 90Vac-264Vac

Frequency: 50/60Hz±5%

Display: 480*272, 4.3" TFT LCD

Dimension (W*H*D): 435x145x500 mm

Weight: 15 kg

Standard

‒ Power Cord

‒ User Manual(CD)

‒ HV Test Cable

‒ D-Sub footswitch

‒ Remote Control Cable

‒ Scan Box (F7721)

Optional

‒ PC Link Software

‒ RS-232 cable

‒ Dual Scan Box (F7721-D)

Datasheet
