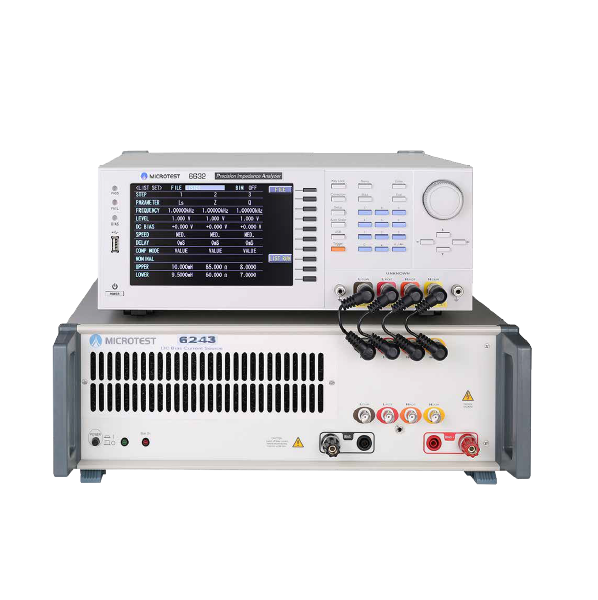

MICROTEST 6243+6632 DC Bias Current Test System (320A Max.; Opt: 10Hz-1/3/5/10/20/30M/50MHz)

DC Bias: 6243

- Output Current: 40A

- Accuracy: 0.000A-1.000A 1%+5mA

1.001A-5.000A 2%

5.001A-20.000A 3%

- Power Consumption: 640W Max.

LCR Meter / Impedance Analyzer: 6632

- Frequency (Hz): 10Hz-1/3/5/10/20/30M/50MHz (optional)

6632-1 10Hz-1MHz

6632-3 10Hz-3MHz

6632-5 10Hz-5MHz

6632-10 10Hz-10MHz

6632-20 10Hz-20MHz

6632-30 10Hz-30MHz

6632-50 10Hz-50MHz

- AC Drive Level: 10mV-2Vrms

- DC Drive Level: 1V (Fixed)

- Output Impedance: 25Ω, 100Ω (switchable)

- Measurement Parameters and Ranges:

+ R, X: ±0.000mΩ-9999.99MΩ

+ |Y|: 0.00000μS-999.999kS

+ G, B: ±0.00000μS-999.999kS

+ θRAD: ±0.00000-3.14159

+ θDEG: ±0.000°-180.000°

+ Cs, Cp: ±0.00000pF-9999.99F

+ Ls, Lp: ±0.00nH-9999.99kH

+ D: 0.00000-9999.99

+ Q: 0.00-9999.99

+ Δ: ±0.00%-9999.99%

+ Rdc: 0.00mΩ-99.9999MΩ

+ εr' εr": 0-100000

+ µr' µr": 0-100000

- Output Current (Max.)/ Frequency Response: 320A Max./10MHz

General

- Power Supply: Voltage 88-264Vac

Frequency 47-63Hz

-Interface RS-232, Handler

-Trigger Test: Auto, Manual, RS-232, GPIB, Handler

-Environment Temperature: 10-40℃, Humidity: 20-90%RH

- Dimension (W*H*D): 435×145×644mm

- Weight: 20Kg

Standard Accessories / Fixtures

- Power Cord

- Ethernet cable

- F6210(DIP)

Optional Accessories / Fixtures

- PC Linksoftware

- F6220 (SMD)

- 6210/6220/6240 connect plate (short/long)

- BNC+BNC cable

- F6220/F6240 (SMD)

DATASHEET

VIDEO
