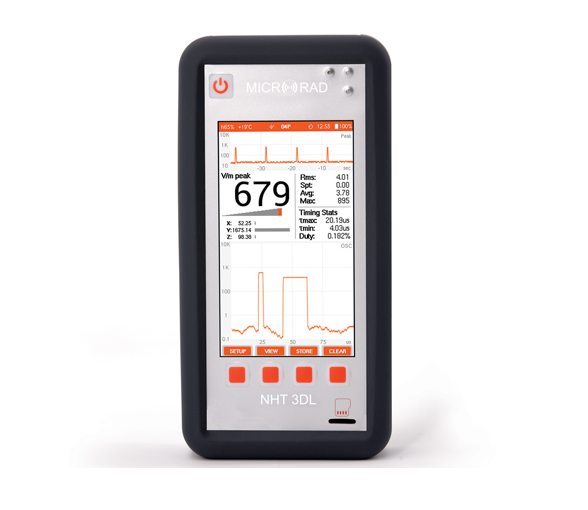

Microrad NHT 3DL Electromagnetic Safety Instrument (100 kHz – 40GHz)

FREQUENCIES

Frequency range: Selective mode: DC – 1 MHz ; Wide Band mode: 100 kHz – 40GHz

OPERATOR INTERFACE

Graphic display: 4.3” TFT, 272 x 480 pixel, 262K color

Backlight: LED, automatic or manual intensity adjustment, readable in sunlight

Input devices: Touch Screen and keypad

MEASUREMENT FUNCTIONS

Measurement units: V/m, kV/m, A/m, W/m2, mW/cm2,, uW/cm2, uT, mT, Gauss, % (depending on the probe)

Display measurement range: From 0,00001 to 999’999 (depending on the probe and on the selected unit)

Refresh period: 4 times per second

Time measurement: Minimum (up to 500 ns) and maximum pulse width measurement, PRF and duty cycle calculation

GENERAL SPECIFICATIONS

Operation time: > 24 hours (backlight and external accessories off)

Charging time: 3.5 hours

Integrated sensors: Humidity (accuracy ±2%) and temperature (accuracy ±0.2°C)

Interface: USB

Operating temperature: -10°C to +50°C

Storage temperature: -20 to +70°C

Humidity: 5% to 95%, non-condensing

Size (h x w x d): 170 x 85 x 31 mm (without probe)

Weigh: 650 g (including battery, without probe)

Country of origin: Italy

ACCESSORIES

Included accessories: Power charger, protective silicone shell, USB cable, application software and user manual in electronic format, ISO 9001÷2015 Standard IEEE 1309-2013 calibration certificate

Optional accessories: Rigid case, GPS sensor, Wi-Fi module, Fiber optic module, Power Bank module, ISO 17025 accredited calibration certificate
