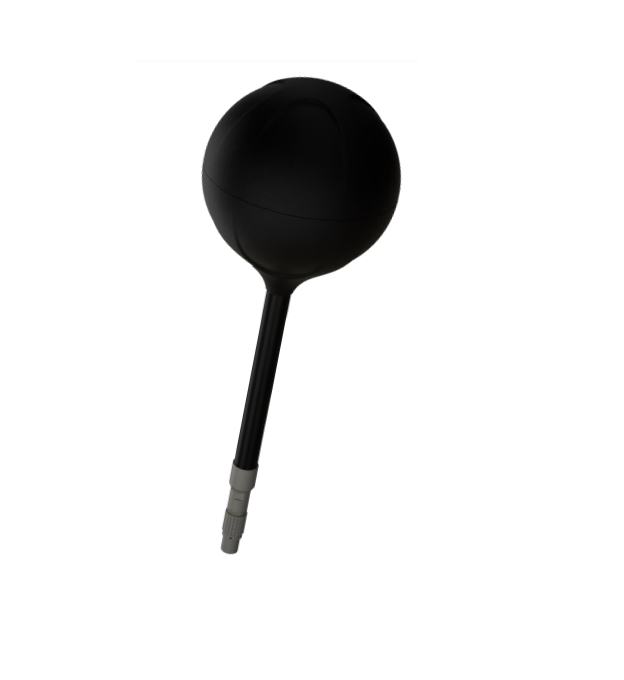

Microrad 20B Magnetic Field Probe for NHT310F & NHT3DL (B Field, 1 Hz ÷20 kHz)
ManufacturerMicrorad(View more products from this manufacturer)
Model20B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Compatibility: NHT310F and NHT3DL meters
TECHNICAL SPECIFICATIONS
Frequency range: 1 Hz ÷ 20 kHz
Type of frequency response: Flat
Measurement range: 300 nT ÷ 16 mT
Dynamic range: 94 dB
Sensor type: Coils
Directivity: Isotropic
Frequency response: ± 0.5 dB (50 Hz ÷ 20 kHz)
Linearity: ± 0.5 dB (1 μT ÷ 1 mT)
± 0.7 dB (1 mT ÷ 16 mT)
Isotropic response: ± 0.5 dB (@50 Hz)
GENERAL CHARACTERISTICS
Recommended calibration interval: 24 months
Operating temperature: 0°C ÷ 50°C
Size: 365 x 120 Ø (mm)
Weight: 135 g
