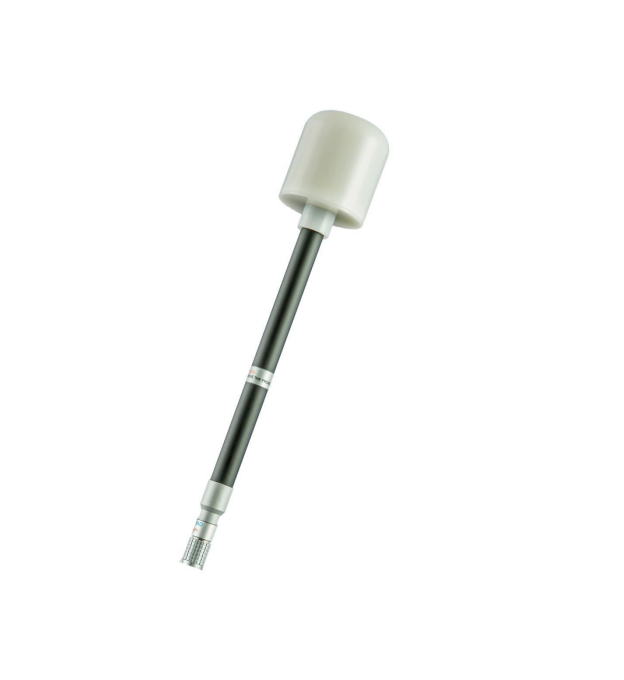

Microrad 11E Magnetic Field Probe for NHT310F & NHT3DL (E Field, 1 Hz ÷ 400 kHz)

Compatibility: NHT310F and NHT3DL meters

TECHNICAL SPECIFICATIONS

Frequency range: 1 Hz ÷ 400 kHz

Type of frequency response: Flat

Measurement range: 1 V/m ÷ 20 kV/m (cw)

Dynamic range: 86 dB

Sensor type: Capacitors

Directivity: Isotropic

Frequency response:

± 0.5 dB (50 Hz ÷ 50 kHz) @1000 V/m

± 1 dB (50 kHz ÷ 400 kHz) @1000 V/m

Linearity :

± 0.5 dB (200 ÷ 2000 V/m) @ 50 Hz

± 0.7 dB (2 ÷ 20 kV/m) @ 50 Hz

Isotropic response: ± 0.7 dB @ 50 Hz

GENERAL CHARACTERISTICS

Recommended calibration interval: 24 months

Operating temperature: -10°C ÷ 50°C

Size: 327 x 60 Ø (mm)

Weight: 120 g
