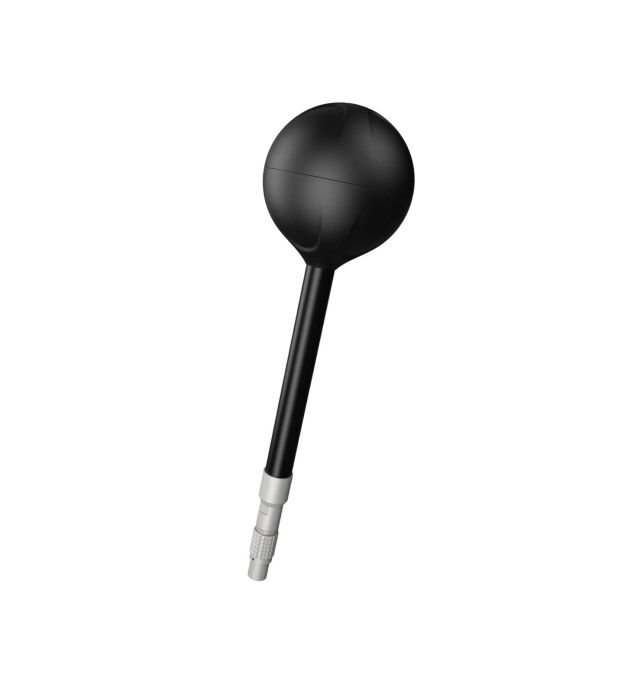

Microrad 03H Magnetic Field Probe for NHT3DL & NHT310F (H Field, 30 MHz ÷ 1 GHz)
ManufacturerMicrorad(View more products from this manufacturer)
Model03H
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Compatibility: NHT3DL, NHT310F meter
TECHNICAL SPECIFICATION
Frequency range: 30 MHz ÷ 1 GHz
Type of frequency response: Flat
Measurement range: 0.01 ÷ 10 A/m
Dynamic range: 60 dB
Sensor type: Coils
Directivity: Isotropic
Frequency response: ± 1.5 dB (60 MHz ÷ 900 MHz)
Linearity: ± 0.5 dB (0.02 ÷ 10 A/m)
Isotropic response: ± 0.5 dB (@ 100 MHz)
GENERAL SPECIFICATION
Recommended calibration interval: 24 months
Operating temperature: -10°C ÷ 50°C
Size: 365 x 80 Ø (mm)
Weight: 180 g
