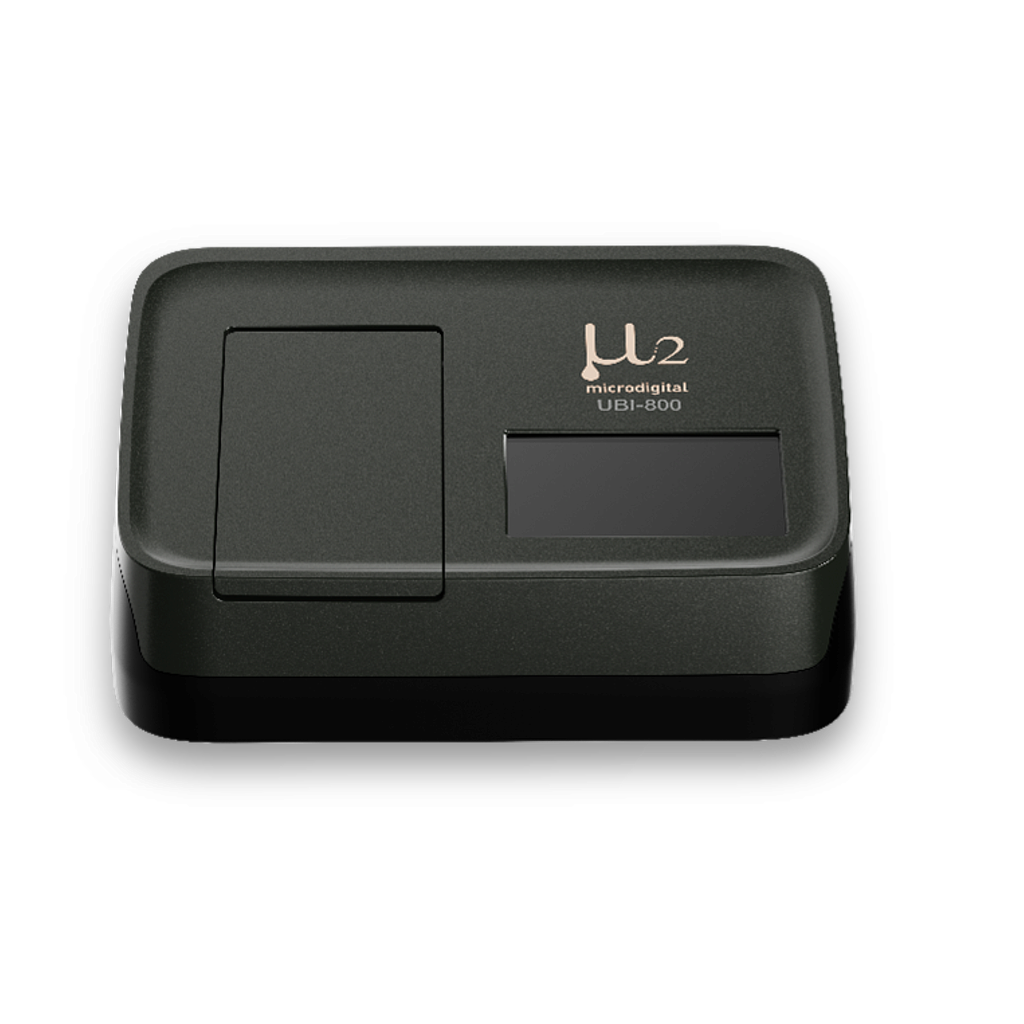

MicroDigital Ubi-800 UV/VIS Spectrophotometer (190-1100nm)

Wavelength Range: 190-1100nm

The spectral bandwidth: 0.5, 1.0, 2.0, 4.0 nm

Wavelength Accuracy: ±0.1nm(D2 656.1nm), ±0.3 nm full range

Stray light: ≤0.01%T @ 220 nm, 360 nm

Wavelength Repeatability: ≤0.1nm

Photometric Accuracy:

±0.2%T(0-100%T)

±0.001Abs(0-0.5Abs)

±0.004Abs(0.5-1.0Abs）

Photometric Repeatability:

≤0.1%T(0-100% T)

0.001Abs(0-0.5Abs)

0.002Abs(0.5-1.0Abs)

Stability: ≤0.0005A/h@250nm, 500nm, 2hr warm-up

Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C

Baseline flatness: ±0.001A

Display: Digital HD 10-inch touch screen

Output: USB port

Light source: Tungsten Lamp & Deuterium Lamp

Power Requirements: AC 220V/50Hz

Detector: Silicon Photodiode

Dimension: 630*430*210mm

Weight: 28kg
