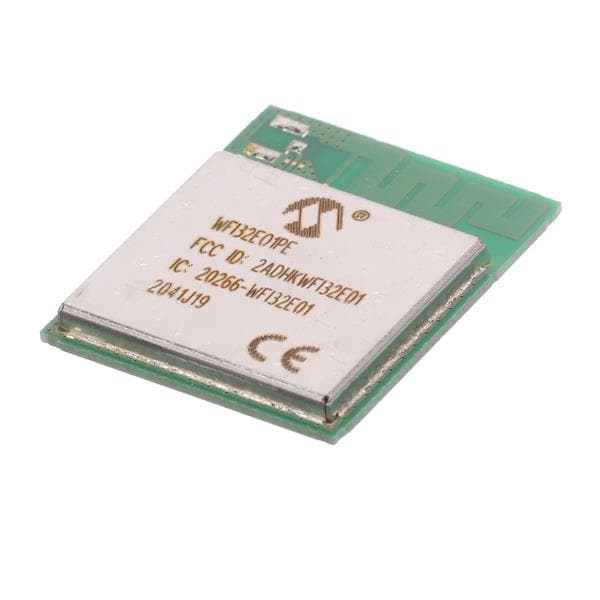

Microchip Technology WFI32E01PE-I WiFi Modules 54-pad Wi-Fi SoC module, 802.11 b/g/n, 1MB Flash, 320KB RAM, PCB ant

Data Rate: 11 Mb/s, 54 Mb/s

Frequency: 2.4 GHz

Output Power: 18.5 dBm, 21.5 dBm

Interface Type: CAN, CAN FD, Ethernet, I2C, SPI, SQI, UART, USB 2.0 OTG

Protocol Supported: 802.11 b/g/n

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: PCB

Operating Supply Voltage: 3 V to 3.6 V

Supply Current Receiving: 73 mA, 88 mA

Supply Current Transmitting: 222 mA, 279 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
