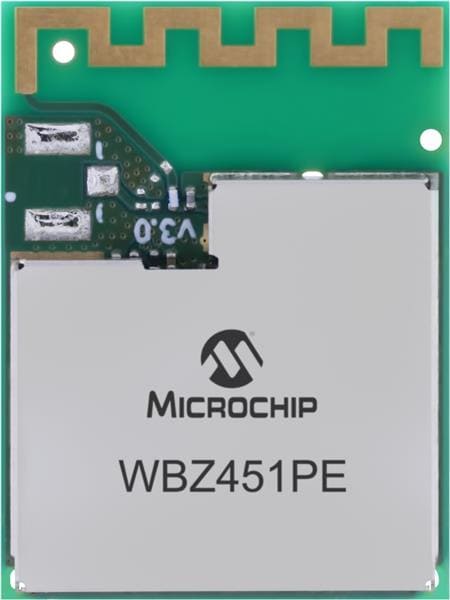

Microchip Technology WBZ451PE-I Bluetooth, Zigbee BLE multiprotocol module, shielded, PCB antenna, Industrial Temp

Core: ARM Cortex M4

Technology: Si

Output Power: 12 dBm

Data RAM Size: 128 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: GPIO, I2C, QSPI, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 29 I/O

Number of Timers: 4 Timer

Maximum Data Rate: 2 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 1 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.9 V

Number of ADC Channels: 8 Channel

Maximum Clock Frequency: 64 MHz

Operating Supply Voltage: 1.9 V to 3.6 V

Supply Current Receiving: 40.6 mA

Operating Temperature Range: - 40 C to + 85 C

Supply Current Transmitting: 96.7 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
