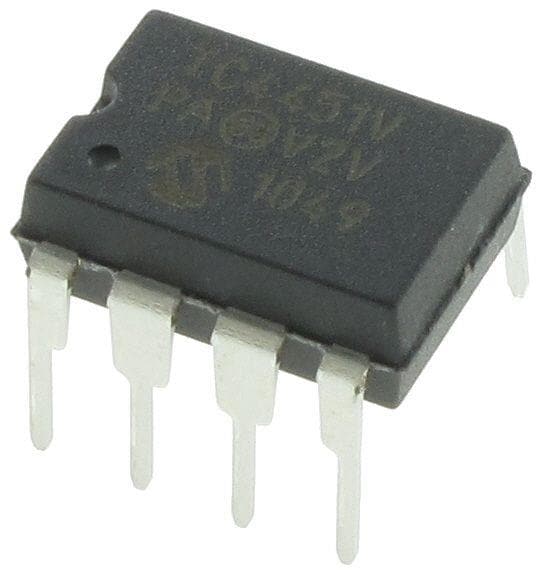

Microchip Technology TC4451VPA Low-Side 12A Sngl MOSFET Drvr

Fall Time: 32 ns

Rise Time: 30 ns

Logic Type: CMOS, TTL

Technology: Si

Unit Weight: 1 g

Configuration: Inverting

Qualification: AEC-Q100

Mounting Style: Through Hole

Output Current: 12 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Supply Voltage - Max: 18 V

Supply Voltage - Min: 4.5 V

Operating Supply Current: 200 uA

Operating Supply Voltage: 4.5 V to 18 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
